Color Steel Antique Glazed Tile:
Modern Craftsmanship Restores Classical Roofing, The Preferred Solution for Building Roofs
Traditional glazed tiles have been popular for thousands of years for their elegant appearance. However, their heavy weight, complicated installation and high cost limit their application in modern factories, residential renovation and ancient-style scenic construction projects. With the technological upgrade of cold roll forming machines, color steel antique glazed tiles have emerged. They perfectly combine the classic aesthetics of traditional glazed tiles with the durability of color steel sheets, and have become a popular roofing material nowadays.
1. What is Color Steel Antique Glazed Tile?
Color steel antique glazed tile, also known as color steel bamboo tile or antique metal tile, is made of high-quality galvanized or galvalume coated steel sheets. The sheets go through multi-pass cold roll forming by a professional antique glazed tile roll forming machine, followed by hydraulic cutting to fixed lengths. The finished tiles feature the curved bamboo profile of traditional glazed tiles, presenting a classic and elegant visual effect while maintaining the lightweight, waterproof and easy-installation advantages of metal sheets.
2. Core Advantages for Various Construction Projects:
1.Lightweight & High Strength, Reducing Building Load .Compared with ceramic glazed tiles, color steel antique glazed tiles are much lighter. They effectively lower the load on roof beams and frames. No large-scale structural reinforcement is required for old roof renovation, which greatly cuts construction time and costs. The base steel sheet has good bending resistance to meet basic construction requirements.
2.Waterproof & Anti-corrosion, Longer Service Life. Adopting weather-resistant coated surface and interlocking waterproof structure, the tiles prevent rainwater penetration effectively. Advanced plating protects the sheets from rust and weathering. With proper outdoor maintenance, qualified tiles can serve 15–30 years, longer than ordinary color steel roof panels.
3.Fast Installation to Shorten Construction Period.Produced in customized fixed lengths, the tiles can be laid and fixed directly on site. There is no need for piece-by-piece tile hanging, which simplifies working procedures and lowers labor costs, ideal for tight-schedule projects. Supported by matched roll forming machines, tile lengths can be customized to minimize overlapping joints and improve waterproof performance.
4.Versatile Appearance for Antique & Modern Buildings. Reproducing the streamline shape of classic glazed tiles with rich color options (Chinese red, dark grey, antique cyan, ivory white, etc.). The tiles fit Chinese-style villas, ancient town renovation, tourist attractions, steel structure workshops, ecological farm gates, pavilions and corridor roofing perfectly.
5.Eco-friendly & Recyclable. The metal substrate can be fully recycled after service without construction waste. The reflective coating reduces heat absorption on rooftops, assisting building heat insulation and cutting energy consumption, complying with green building material standards.
3. Supporting Production Equipment: Antique Glazed Tile Roll Forming Machine:

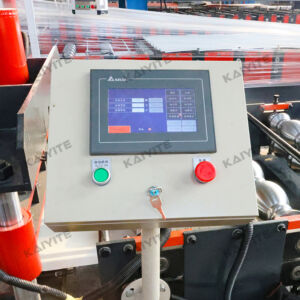

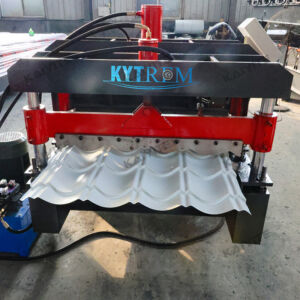

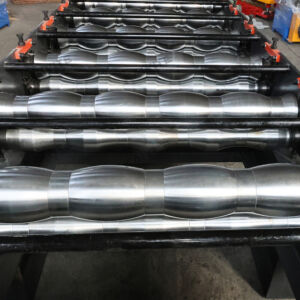

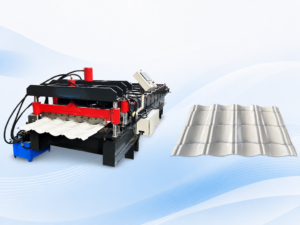

Finished color steel antique glazed tiles are manufactured by fully automatic antique glazed tile roll forming equipment. A complete line includes uncoiler, multi-group forming rollers, hydraulic cutting system and PLC intelligent control cabinet. The whole line features high automation: operators input target tile length, then the machine finishes feeding, roll forming and fixed-length cutting automatically. Uniform tile profile and tight interlocking ensure high roofing quality. The machine supports steel sheets of different thicknesses for stable continuous production, which is core processing equipment for color steel material factories.
4. Purchase & Usage Tips:
1.Material selection: Prioritize high weather-resistant galvalume coated steel sheets. Fluorocarbon coating is recommended for long-term outdoor use to resist fading.
2.Installation specification: Use matched waterproof accessories, self-tapping screws and sealant to seal ridges, eaves and overlapping joints.
3.Custom production: Customize tile length according to actual roof size to reduce horizontal overlaps and leakage risks.
4.Equipment procurement: For tile manufacturers, focus on roller material, PLC control stability and hydraulic cutting performance when purchasing roll forming machines for long-term stable production.
Conclusion:
Color steel antique glazed tiles break the limitations of traditional ceramic glazed tiles. Modern metal forming technology inherits Chinese roofing aesthetics with balanced performance: attractive appearance, long service life, low cost and fast installation. For engineering procurement and tile factory investment, antique glazed tiles and matched roll forming machines meet wide market demands. They are widely adopted in various Chinese-style roofing projects and remain mainstream products in the roofing material industry.
Detailed Diagram:
