Detailed Product Description
Basic Info
| Model No.: KYT | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO, Other | Condition: New |
| Customized: Customized | Usage: Floor, Other |
| Transmission Method: Electric | After-sales Service Provided: Engineers Available Debug Machine Overseas |
| Brand: KYT | Warranty: 24 Months |
| Control System: PLC | Cutting Type: Hydraulic |
| Certificate: ISO9001/CE | Place Of Origin: China |
| Suitable Material: Steel Strip | Package: Packed With Water Proof Paper |
| Name: Z Sectionc Channel Purlin Machine | |
Additional Info
| Packaging: seaworthy packing | Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001/CE | HS Code: 8455221000 |
| Port: Tianjin Port | |
Product Description

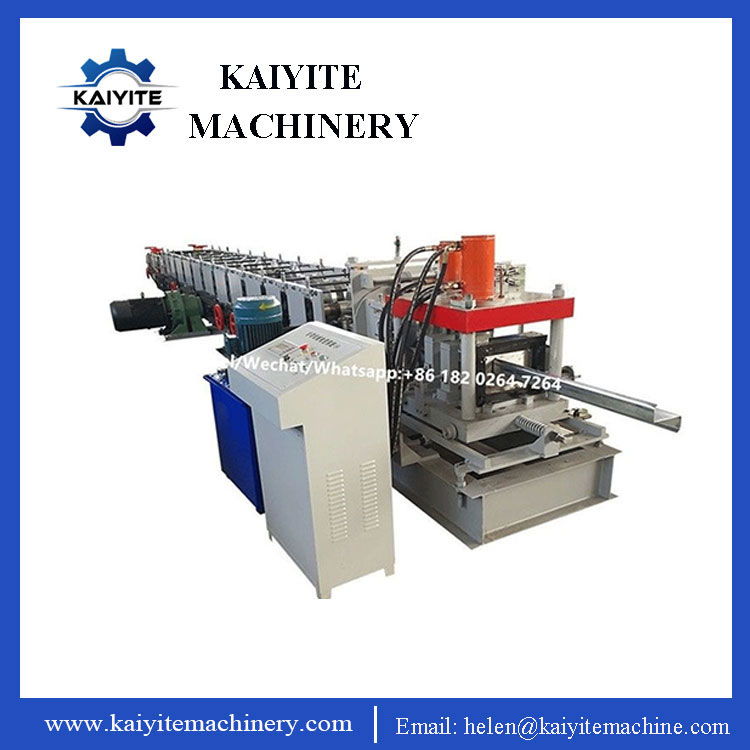

Z Sectionc Channel Purlin Roll Forming Machine
Z Sectionc Channel Purlin Machine has a large market now . The Z section channel purlin is widely used in steel structral frame, it is more strong than wooden purlin but cheaper , light and more easy install than concrete purlin. This Z Sectionc Channel Purlin Machine can punching holes on the Z purlin according to customer’s requirement and it has two operate modes, one is manual, the other one is automatic, by this way, it can help you to operate it more convenient. What’s more, this machine only need one worker to operate.
Technical Parameters Of Z Purlin Roll Forming Machine
|
No. |
Type |
Specification |
|
|
1 |
Row Material |
Type | Steel plate, Galvanized board, Aluminum plate |
| Feeding width | Accroding to client`s requirement | ||
| Thickness | 2.0-3.0 mm | ||
|
2 |
Main body |
Forming roller station | 15 Stations ( According to the size of C purlin) |
| Flatting roller | 5 Rollers ( Upper 3 rollers, down 4 rollers ) | ||
| Diameter of shaft | ￠90mm | ||
| Shaft material | 40Cr , Numerical Control Machining To HRC28-32, Then Polishing and Hard Plating | ||
| Roller material | GCr15# Steel , Heat Treatment to HRC58-60, Then Polishing and Hard Plating | ||
| Frame | 400mm H Steel | ||
| Frame thickenss | 20 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 8-15 m/min | ||
| Size (L*W*H) | 7600*1350*1610mm | ||
| Weight | About 3.5 Tons | ||
|
3 |
Power |
Main power | 7.5 kw |
| Hydraulic motor | 5.5KW | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Chain | ||
| Wire to power | Suggest 8mm2 | ||
Working Flow
3.5T decoiler — Feeding and flatting table — Main roll forming machine — Punching system — Cutting device– Product receiving table
Component of Z Purlin Roll Foming Machine
* 3.5T Decoiler………………………………1 Set
* Feeding and Leveling Device………………………………1 Set
* Main Roll Forming Machine………………………………1 Set
* PLC Control System………………………………1 Set
* Hydraulic Punching and Cutting………………………………1 Set
* Discharge Table………………………………2 Set
Z Purlin Dimensions Table
Z Purlin Roll Forming Machine Feature
* High performance * No noise * Low cost
* 5 Years warranty * Long working life * Easy to operate
* High quality * Full Automatic * Pass ISO9001/CE
* Accurate * Teda brand PLC * Touch Screen
* Chain Drived * Two Operat Language
Finished Z Channel Purlin
We can design machine according to customer’s requirement or profile drawing.
Application
Z purlin is widly used in large-scal steel structure, such as warehouse, workshop and so on. It has a large market.
Loading And Shipping
* We will packed water proof paper on the machine .
* This Z Purlin Roll Foming Machine need 1*40 GP container to load .
* Fix machine by steel wire rope, to ensure it will not damage when shaking on sea.
* We will take photos and videos for customer when loading to container .
