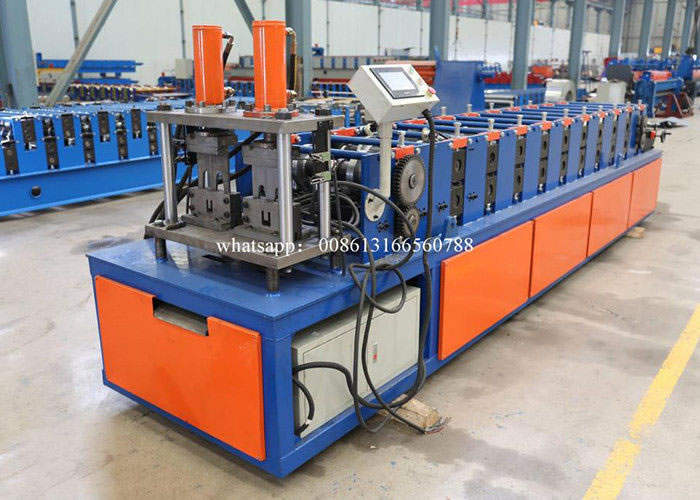

U Channel Purlin Double Line Roll Forming Machine

U channel purlin double line roll forming machine is used to produce the different size of u purlin . One Purlin Roll Forming Machine can produce many different size of it . The two double line share the same base frame .

As the Steel Purlin Forming Machine is customized machine . We have to alibity to design and produce the machine according to the requirement of the client .

Purlin Roll Forming Machine Parameter

* Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate ;

* Width of the raw material: 175-465mm ; * Thickness:1.5mm – 3mm ;

* Roller station: 11 Stations ; * Diameter of shaft: ￠70mm, 45# steel ;

* Roller material: 45# steel ; * Main Body Frame: 350 H steel ;

* Operate: Manual and Automatic ; * Working speed: 8 – 10 m/min ;

* Size (L*W*H): about 5800*1250*1510 mm;

* Motor power: 5.5 Kw, Hydraulic power: 3 Kw;

* Voltage: 380V 50Hz 3Phases or Customization; * Driving way: By Chain

Steel Purlin Forming Machine Working Flow

Uncoiler — Feeding and Leveling Device — Main Roll Former — PLC Control System — Hydraulic Cutting — Discharge Table

Our Service

* Installation and Training Machine

a. If buyers visit our factory and check the machine, we will teach you how to instal and use the machine, and also train your workers or technician face to face.
b. Without visiting, we will send you user manual and video to teach you how to install and operate.
c. If buyer needs our technican to go to your local factory, please arrange board and lodging with other necessary things.
* After Service Of Machine
a. 24 hours technical support by email or calling.
b. If there is any problem that you can`t repaired, we can ask our engineer to your factory to help you slove it.
Interchangeable C Z Purlin Roll Forming Machine Packing and Shipping

For this machine need 1*40 GP container to load, one container can load 2 sets machines normally.

Before loading to container, we will check and test machine frist.

Second, make some protection on the machine. Such as, we will make the plastic package on the easy damage parts, paint the oil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delievery.

Third, we will fix all the parts into container by steel wire rope. And ensure the machine will not damage when shaking on sea.

At last, we will take phoots and videos for customer when loading to container, so that the customer can take out the machine easily when receive the goods.
