| Detailed Product Description | |||
| Place Of Original: | China | Brand: | KYT |
| Control System: | Full Automatic | Warranty: | 5 Years |
Basic Info
| Model No.: KYT | Product Name: Aluminium Trapezoidal Roof And Wall Panl Machine |
| Control System: PLC Control | After Sale Service: Engineer Available To Service Machine Abroad |
| Certificate: CE/ISO9001 | Transmission: By Chain |
| Warranty: 18 Month | RAW MATERIAL: Colored Steel Plate;Galvanized Board; Aluminum Pla |
| Thickness Of Material: 0.3-0.7mm | Width Of Material: Accroding To Client’s Request |
| Cutting Device: Hydraulic Cutting | Tile Type: Other |
| Certification: SGS, CE, ISO, Other | Condition: New |
| Customized: Customized | Usage: Roof, Wall |
| Transmission Method: Other | |
Additional Info
| Packaging: Main machine is packed with water proof paper, the computer control box is packed by carton box |
Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001/CE | HS Code: 8455221000 |
| Port: Tianjin Port | |
Product Description
South Africa Double Layer Roofing Sheet Machine
This double layer roofing sheet machine is produced for our South Africa Client . The width of the coil in South Africa is 940mm , the cover width is 762mm .
The Double Layer Roll Forming Machine can save the space and cost for the client . Two layer share the same hydraulic cutting part , so it cannot work at the same time . The plc control box make it work automatically .
Before it works , the worker need to input the data of the length and pieces into it computer , and then the equipment will work itself .
The drawing of the two profile is like the following picture .
Main Parameter Of Metal Roof Roll Forming Machine ?
| 1 | Dimensions (L*W*H) | 7400*1550*1510mm |
| 2 | Total power | Motor power:4kw Hydraulic power:4kw |
| 3 | Rows of rollers | 13 Stations / 15 stations |
| 4 | Productivity | 10-15m/min |
| 5 | Diameter of shaft | 75mm |
| 6 | Voltage | 380V 50hz 3phases |
| 7 | Machine body | 300mm H beam |
| 8 | Middle plate | 16mm |
| 9 | Weight | About 3 ton |
| 10 | Chains | 1.5 inch |
| 11 | Roller material | 45# steel plated with chrome |
| 12 | Shafts material | 45# steel |
| 13 | Cutting blade material | Cr12 with quenching treatment |

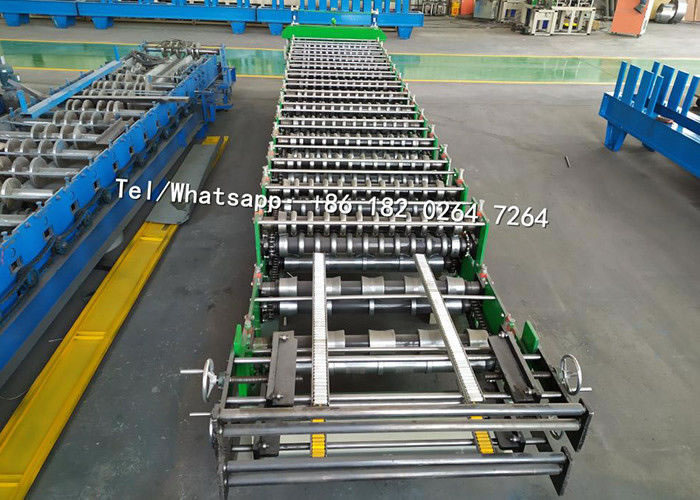

The Photo of Double Roll Forming Mahcine
Working Flow of the Double Deck Roll Forming Machine
5 Tons Decoiler — Panel Feeding And Guiding Table — Main Roll Forming Machine — PLC Control System — Hydraulic Cutting Device — Product Receiving Table
Machine Feature
* Low Cost * High efficiency * 18 Months Warranty
* Reliable working * Low energy consumption * Easy to operate
* Long working life * Accurate * Full automatic
* No noise * High Quality ( Pass ISO9001/CE)
Some Other type Of Roof And Wall Panel Roll Forming Machine
There are some other type of corrugated tile for customers reference . If you want to other profile , pls contact us , we accept customerzed and can design machine according to client’s requirement .
Application
Different roof panel machines can produce different shapes of steel roof, wall sheets according to the clients’ profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors. They have many advantages, such as low cost, easy installation, short building period, re-cycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers, etc.
Clients Visit
Welcome customers all over the world to visit us .
