Detailed Product Description
Basic Info
| Model No.: KTY | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall, Other |
| Transmission Method: Other | Place Of Origin: China |
| After-sales Service Provided: Engineers Available
To Debug The Machine Overseas |
Warranty: 24 Months |
| RAW MATERIAL: Colored Steel Sheet,
galvanized Steel Sheet |
Control System: PLC |
| Cutting Type: Hydraulic | Voltage: As Your Required |
| Production Capacity: 8-15meter/min | Thickness Of Raw Material: 0.8-2mm |
| Product Name: Steel U Door Guide Channel Roll Forming Machine | |
Additional Info
| Packaging: seaworthy packing | Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9000 | HS Code: 84552210 |
| Port: Tianjin,Shanghai | |
Product Description

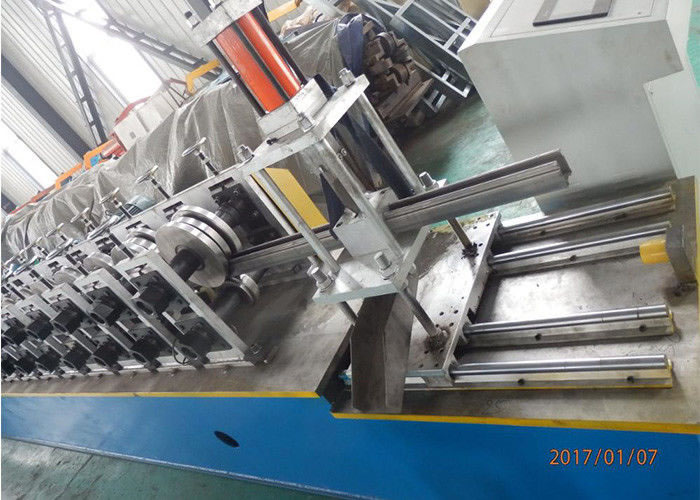

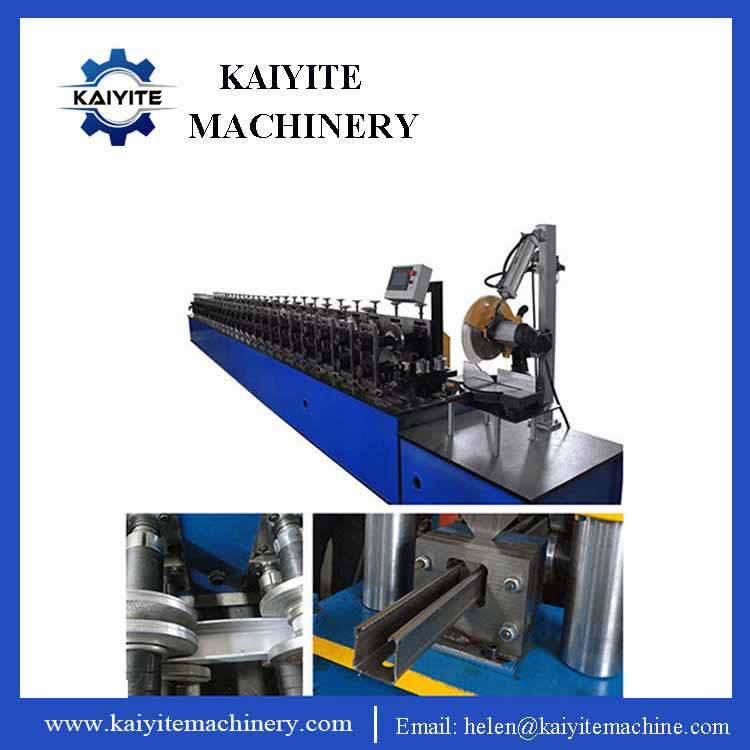

Slide Door Guide Rail Metal Shutter Machine
The slide door guide rail metal shutter machine can produce the U guide rail automatically . We are exported many machines all over the world , so we know very well about the needs of foreign client .
Also we have after sale service department . Once you meet problem when you using our shutter door machine , we will solve if for you ASAP .
What is the work flow of the Shutter Door Roll Forming Machine ?
Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand
What is the drawing of the U guide Rail Roll Forming Machine?
The following is some profiles of the u guide rail roll forming machine , if your profile is different from these , please contact me for the detaileds .
What is the Technical parameters of the guide Rolling Shutter Machine ?
Processing material: colored steel plate, galvanized plate, or aluminium plate
Material thickness: 0.8—2.0 mm
Material hardness: 550 mpa—350 mpa
Material width: 200mm(according to the profile)
Formed width: 101.6mm (according to the profile)
Forming speed: 12m/min
Working speed :8m/min
What is the production process of the shutter door roll forming machine?
The following picture shows the whole production process of the roll forming machine.
Kaiyite machinery is a leading manufacture of roll forming machine . We know well the particular requirements for the customers from different countries , and have an outstanding export team who will take your requests . Our experts and skilled workers complete the work with great precision .
We provide an extensive line of products , including Roller Shutter Door Roll Forming Machine , Door Frame Machine , Roof And Wall Panel Roll Forming Machine , Double Layer Roll Forming Machine , Floor Deck Roll Forming Machine ,C / Z / U Purlin Roll Forming Machine , Stud And Track Roll Forming Machine , Ridge Cap Roll Forming Machine , Downspout Pipe Roll Forming Machine , Shearing Machine And Bending Machine , Slitting And Cutting Machine .
The machines produced by our factory has been sold worldwide such as Russia , Kazakhstan, England, America, Italy, Australia, Philippines, India, Thailand, Nigeria and Syria, etc. So we are with great facility about the different needs for different markets.
