Detailed Product Description
Basic Info
| Model No.: KYT | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall, Floor |
| Transmission Method: Hydraulic Pressure | Control System: PLC Control |
| After Sale Service: Engineer Available To Service Machine Abroad |
Certificate: CE/ISO9001 |
| Transmission: By Chain | Width Of Material: Accroding To Client’s Request |
| Cutting Device: Hydraulic Cutting | Payment: By T/T |
| Package: With Water Proof Paper | Warranty: 5 Years |
| Product Name: Glazed Roof Sheet Forming Machine | |
Additional Info
| Packaging: Main machine is packed with water proof paper, the computer control box is packed by carton box |
Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001/CE | HS Code: 84552210000 |
| Port: Tianjin Port,Shanghai Port,Qingdao Port | |
Product Description
Roofing Sheet Making Machine For Algeria
Some client want to know what the roofing sheet making machine is . Actually this equipment belong to the cold bending machinery . It can form the metal roof sheet ( the roof sheet profile is according to the client requirement) by pressing several steps . The Metal Roof Roll Forming Machine has the PLC control system , we can set the length and pieces by entering the data in the PLC , so that the machine will cut the roof sheet into the setted length and quantity .
The following picture can help you understand much better for the application of the roof profiles .
Profile And Finished Roof profile by the Metal Roofing Panel Machine
The following drawing is designed for the Algeria client , depend on his needs , one machine can make the two different profiles . This profiles is very popular in Algeria .
Also the other advantage of this Roof Panel Roll Forming Machine is its speed , we adopt the gear box transmission system . so that it can reach 35 meter per minute , very fast compared with the common machine . Because the common machine can only reach 8-12 meter per minute . If the client has a large demant of the profile , this design is a good choice for you .
Main Specification Of Roof And Wall Panel Roll Forming Machine
| No. | Type | Specification | |
| 1 | Row Material | Type | Aluminum / Steel / Galvanized Panel |
| Feeding width | 1200mm | ||
| Thickness | 1200mm | ||
| 2 | Main body | Roller station | 22 Steps |
| Diameter of shaft | ￠105mm | ||
| Shaft material | 45# Steel , Heat Treatment and Polishing | ||
| Roller material | 45# Steel , Heat Treatment and Polishing | ||
| Frame | 400mm H Steel | ||
| Frame thickenss | 22 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 30-35m/min | ||
| Size (L*W*H) | About 11500*1650*1450mm | ||
| Weight | About 3.5 Tons | ||
| Cutting type | Hydraulic cutting | ||
| Material of blade | Cr12, HRC60-62°C | ||
| 3 | Power | Motor power | 15 kw |
| Hydraulic power | 4 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | Gear box | ||
Working Flow Of metal roof panel machine
5 Tons Decoiler — Panel Feeding And Guiding Table — Main Roll Forming Machine — PLC Control System — Hydraulic Cutting Device — Product Receiving Table

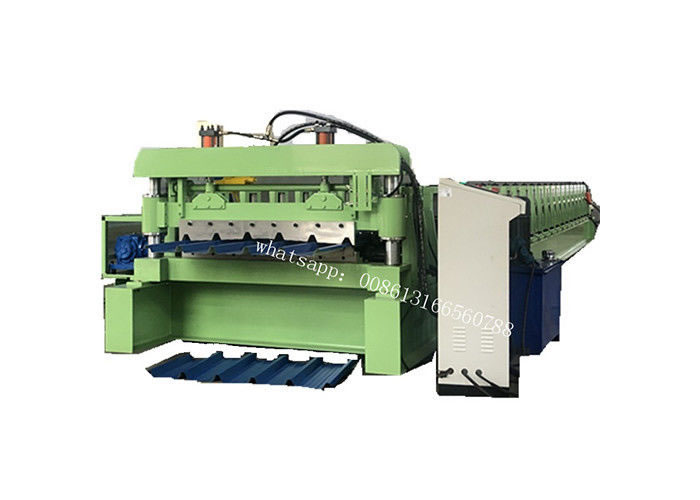

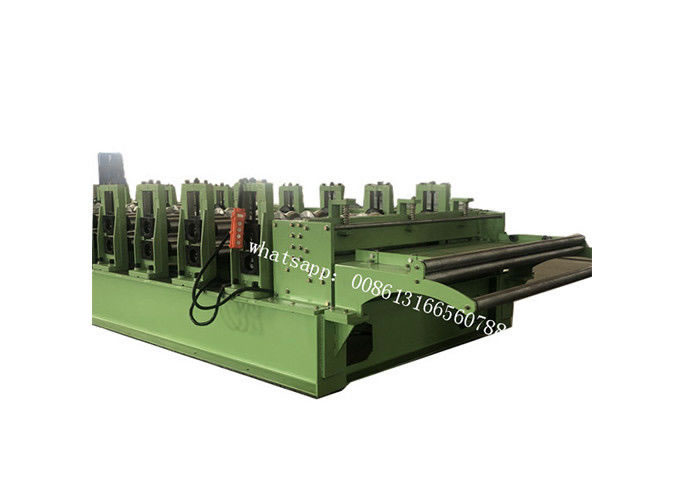

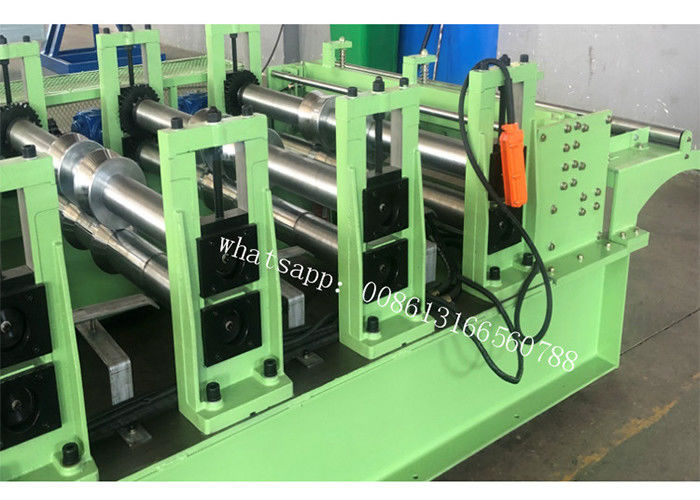

More picture of the metal roof roll forming machine
When we ship the roof panel machine to you , we will also send the client the necessary spare parts .
* 5T Decoiler………………………………1 Set
* Discharge Table………………………………2 Set
* The tool box ………………………………..1 set
Application
This type of sheet are widly used in warehouse, workshop, roofing and other part. It has a large market.
Loading And Shipping
* We will packed water proof paper on the machine .
* This Glazed Tile Roll Forming Machine need 1*40 GP container to load .
* Fix machine by steel wire rope, to ensure it will not damage when shaking on sea.
* We will take photos and videos for customer when loading to container .
Clients Visit
Welcome all the friends from all over the world to visit us . We can have a meet face to face , what’s more , you can know us and our factory better .
Contact Us
24 hourse service the world .
Your kindly inquiry or samply are warmly welcome .
If you want to learn more about this machine or has any questions , please contact us freely .
