Detailed Product Description
Basic Info
| Model No.: KYT | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO, Other | Condition: New |
| Customized: Customized | Usage: Floor, Other |
| Transmission Method: Electric | After-sales Service Provided: Engineers Available Debug Machine Overseas |
| Brand: KYT | Warranty: 24 Months |
| Control System: PLC | Cutting Type: Hydraulic |
| Certificate: ISO9001/CE | Place Of Origin: China |
| Suitable Material: Steel Strip | Package: Packed With Water Proof Paper |
| Name: C Channel Purlin Machine | |
Additional Info
| Packaging: seaworthy packing | Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001/CE | HS Code: 8455221000 |
| Port: Tianjin Port | |
Product Description
Metal M Purlin Roll Forming Machine
Except the c , u and z purlin , some client some need the M purlin profile . The usage is similar with the C Z U purlin . As the frame of the building , it is to suppor the roof sheet .
For this M purlin roll forming machine , one machine can produced several different size by adding the spacer between the rollers . So we can change the size by changing the roller .
This Steel Purlin Forming Machine adopts the hydraulic cutting system . We need to change the blade when the Channel Roll Forming Machine produce the different size profile .
The drawing of the purlin roll forming machine
Technical Parameters Of Purlin Roll Forming Machine
1: coil width : according to the profiles
2: working speed :8-10 m/min
3: Roll station :12 stations
4: material of roller :Cr12 steel
5: material of main shaft : 45# forged steel
6: main power :18.5kw
7:forming thickness :1-3mm
8: transmission : chain
9: about 11800*2200*1500 mm L*M*H
Working Flow of M Channel Machine
3.5T decoiler — Feeding and flatting table — Main roll forming machine — Punching system — Cutting device– Product receiving table
Component of M Purlin Roll Foming Machine
* 3.5T Decoiler………………………………1 Set
* Feeding and Leveling Device………………………………1 Set
* Main Roll Forming Machine………………………………1 Set
* PLC Control System………………………………1 Set
* Hydraulic Punching and Cutting………………………………1 Set
* Discharge Table………………………………2 Set
We can design machine to pproduce multy size of C purlin accroding to client’s requirement
Product Feature
* Full automatic * Lower cost * High efficiency
* Reliable working * 18 Month Warranty * Easy Operate
* Low energy consumption * Accurate * Passed ISO9001/CE

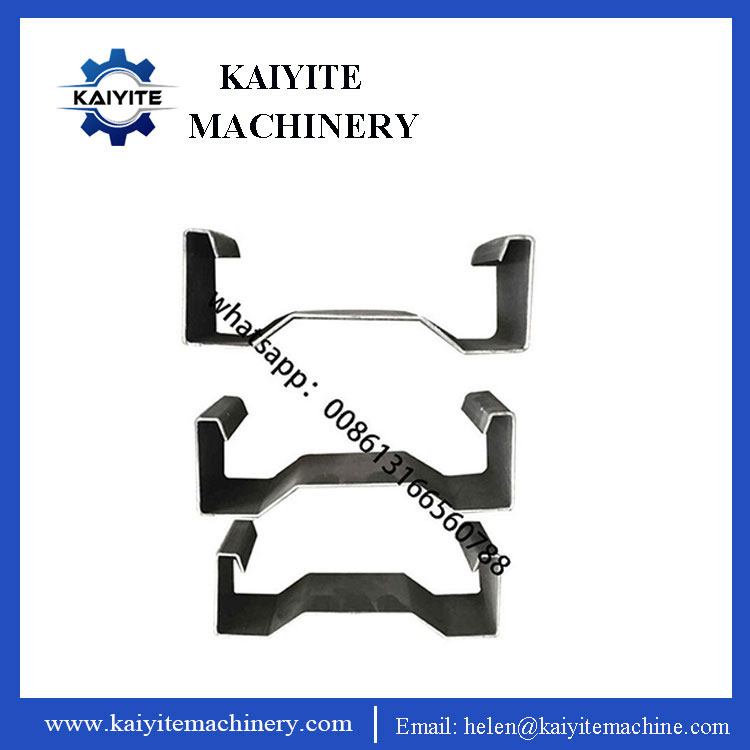

Finished M Channel Purlin
We can design machine according to customer’s requirement or profile drawing.
Application
M purlin is widly used in large-scal steel structure, such as warehouse, workshop and so on. It has a large market.
