Detailed Product Description
Basic Info
| Model No.: KYT | Certification: CE, ISO9001 |
| Customized: Customized | Condition: New |
| Control Type: CNC | Automatic Grade: Automatic |
| Drive: Electric | Advantage: Special Design As Customers’ Require |
| Group Type: Factory | Working Speed: 12m/min |
| Use: Shutter Door Bottom Lath | |
Additional Info
| Packaging: machine is packed by water proof papers | Productivity: 10 sets per month |
| Brand: KYT | Transportation: Ocean |
| Place of Origin: China | Supply Ability: 20 sets per month |
| Certificate: CE/ISO 9001 | HS Code: 84552210000 |
| Port: Tianjin New Port | |
Product Description

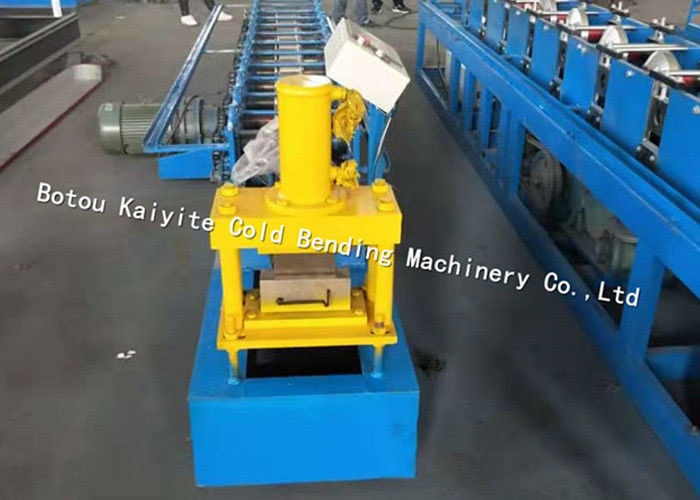

L Section Roller Shutter Bottom Lath Machine
This L section roller shutter bottom lath roll forming machine make the shutter door bottom lath, which is the last slat of the roller shutter door. This bottom slat is thicker than the shutter door slats, and shape is a little different with the shutter door at the end. The end part is flat and also have the space for lock. The end design has two main different designs: L section and T section. Customers can choose what design he need, and also we can special design for customer.
Parameters for Roller Shutter Bottom Lath Machine:
Suitable Raw Material: Color Steel Coil, Galvanized Coil, Aluminum Coil and So on.
Raw Material Width: Design as Customer Require.
Raw Material Thickness: 0.3-0.7mm.
Drive System: by chain.
Forming Roller: 12 Raws.
Roller Material: ￠40mm Shaft 45# Steel, Hard Chrome
Motor: 4KW for Driving, and 4KW for Cutting.
Machine Apperance: About 4200x980x1410mm (LxWxH).
Machine Voltage: 380v, 50Hz, 3Phase
PLC Brand: Delta Brand with Touch Screen
Working Speed: 12m/min
Wall Sheet Thickness: 14mm
The L Type Bottom Strips For Shutter Door:
Working Process for Shutter Door Bottom Lath
3T Uncoiler – Feeding Table – Roll Forming Rollers -PLC Control System – Hydraulic Cutting
Component for Rolling Shutter Slats Machine
Manual Uncoiler: 1 piece;
Main Forming Machine: 1 set;
Control Box: 1 set;
Hydraulic System: 1 piece;
Spare Pars: 1 box
