| Detailed Product Description | |||
| Place Of Original: | China | Brand: | KYT |
| Control System: | Full Automatic | Warranty: | 5 Years |
Basic Info
| Model No.: KYT | Tile Type: Glazed Steel |
| Certification: CE, ISO, Other | Condition: New |
| Customized: Customized | Usage: Roof |
| Transmission Method: Electric | Place Of Origin: China |
| Control System: PLC | Thickness Of Raw Material: 0.3-0.8mm |
| Cutting Type: Hydraulic Cutting | Voltage: 380V 50Hz 3Phases Or As Your Required |
| Roller Material: 45# Forged Steel | Material Of Cutting Blade: Cr12 Heat Treatment |
| Main Body: 350H Steel | Shaft Material: 45# Steel, Outer Diameter:80mm |
| Production Capacity: 2-4meter/min | |
Additional Info
| Packaging: Seaworthy packing | Productivity: 30 sets per month |
| Brand: Kaiyite | Transportation: Ocean |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9000 | HS Code: 8455221000 |
| Port: Tianjin Port,Shanghai Port | |
Product Description

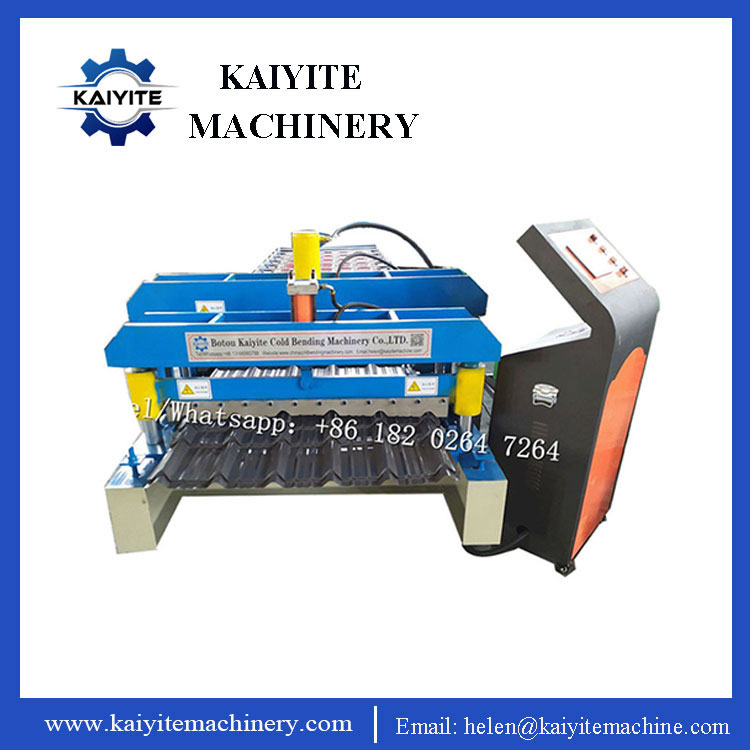

Glazed Tile Roofing Roll Forming Machine For Congo
Glazed tile roofing roll forming machine is also a kind of cold bending machinery , it is used to produce the glazed roof tile . This metal roof panel machine is produced for our Congo client .
The width of the raw material is 1250mm , it has three small rib during the big rib which make the profile much more beautiful .
Metal Glazed Tile Process Flow
Decoiler- Feeding and Leveling device- Main Roll Forming System- PLC Control System- Hydraulic Cutting device- Discharge table.
Metal Roof Roll Forming Machine Parameter
Raw Material
A. Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate;
B. Width of the raw material: 925-1250mm; C. Thickness: 0.3mm – 0.8mm;
Main Body
A. Roller station: 12 rows; B. Diameter of shaft: ￠75mm, 45# steel;
C. Roller material: 45# steel; D. Frame: 350 H steel;
E. Operate: Manual and Automatic; F. Working speed: 2-4 m/min;
G. Size (L*W*H): about 8700*1550*1510 mm;
Power
A. Motor power: 4 Kw, Hydraulic power: 4 Kw;
B. Voltage: 380V 50Hz 3Phases or Customization;
C. Driving way: By Chain
Components of Metal Roofing Panel Machine
Manual Deciler ………………………………………………………..1 Set
Feeding Table ………………………………………………………..1 Set
Main roll forming system ………………………………………………………..1 Set
Hydraulic system ………………………………………………………..1 Set
PLC Control Cabinet ………………………………………………………..1 Set
Hydraulic Cutting Device ………………………………………………………..1 Set
Discharge table ………………………………………………………..2 Set
Spare Part ………………………………………………………..1 Set
The application of the Roof Panel Roll Forming Machine
The Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
