Detailed Product Description
Basic Info
| Model No.: KYT | Tile Type: Glazed Steel |
| Certification: CE, ISO, Other | Condition: New |
| Customized: Customized | Usage: Roof |
| Transmission Method: Electric | Place Of Origin: China |
| Control System: PLC | Thickness Of Raw Material: 0.3-0.8mm |
| Cutting Type: Hydraulic Cutting | Voltage: 380V 50Hz 3Phases Or As Your Required |
| Roller Material: 45# Forged Steel | Material Of Cutting Blade: Cr12 Heat Treatment |
| Main Body: 350H Steel | Shaft Material: 45# Steel, Outer Diameter:80mm |
| Production Capacity: 2-4meter/min | |
Additional Info
| Packaging: Seaworthy packing | Productivity: 30 sets per month |
| Brand: Kaiyite | Transportation: Ocean |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9000 | HS Code: 8455221000 |
| Port: Tianjin Port,Shanghai Port | |
Product Description

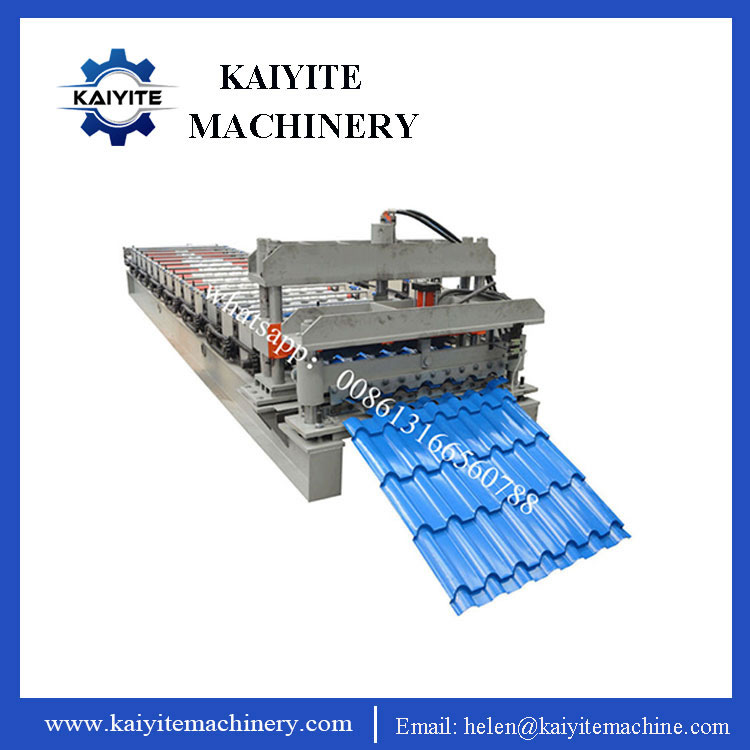

Glazed Tile Roof Panel Roll Forming Machine
Metropole aluminium roof tile roll forming machine is a kind of Metal Roll Forming Machine . Because of its shape is like the metropole , in Nigeria , people call it metropole roll forming machine .

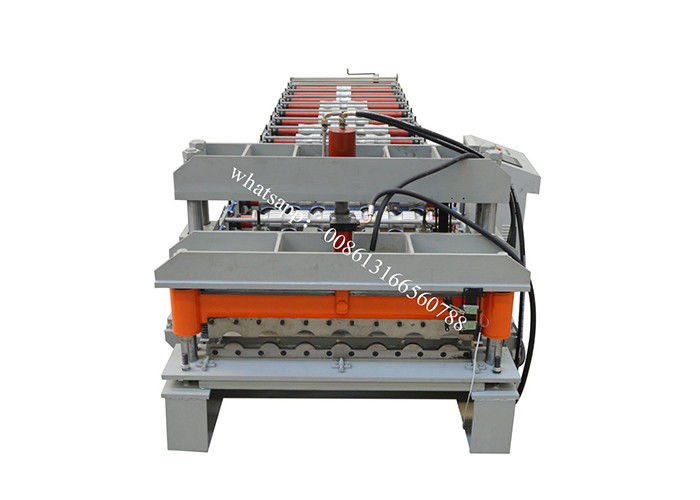

Compared with the IBR roof roll forming machine , it has a hydraulic press part which is used to make the metropole type . For this Roof And Wall Panel Roll Forming Machine , there is a front cutting .
When you want to change the coil , you can cut it directly by the front cutting . To imporve the quality of the machine , we have updated many details of the machine , for example the oil tube .
Metal Glazed Tile Process Flow
Decoiler- Feeding and Leveling device- Main Roll Forming System- PLC Control System- Hydraulic Cutting device- Discharge table.
Metal Roof Roll Forming Machine Parameter
Raw Material
A. Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate;
B. Width of the raw material: 925-1250mm; C. Thickness: 0.3mm – 0.8mm;
Main Body
A. Roller station: 13 rows; B. Diameter of shaft: ￠75mm, 45# steel;
C. Roller material: 45# steel; D. Frame: 350 H steel;
E. Operate: Manual and Automatic; F. Working speed: 2-4 m/min;
G. Size (L*W*H): about 8700*1550*1510 mm;
Power
A. Motor power: 4 Kw, Hydraulic power: 4 Kw;
B. Voltage: 380V 50Hz 3Phases or Customization;
C. Driving way: By Chain
Components of machine
Manual Deciler ………………………………………………………..1 Set
Feeding Table ………………………………………………………..1 Set
Main roll forming system ………………………………………………………..1 Set
Hydraulic system ………………………………………………………..1 Set
PLC Control Cabinet ………………………………………………………..1 Set
Hydraulic Cutting Device ………………………………………………………..1 Set
Discharge table ………………………………………………………..2 Set
Spare Part ………………………………………………………..1 Set
The application of the roof panel roll forming machine
The Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.
Company Information
Kaiyite machinery is a leading manufacture of roll forming machine . We know well the particular requirements for the customers from different countries , and have an outstanding export team who will take your requests . Our experts and skilled workers complete the work with great precision .
We provide an extensive line of products , including Roller Shutter Door Roll Forming Machine , Door Frame Machine , roof and wall panel roll forming machine , Double Layer Roll Forming Machine ,Floor Deck Roll Forming Machine ,C / Z / U Purlin Roll Forming Machine , Stud And Track Roll Forming Machine , Ridge Cap Roll Forming Machine , Downspout Pipe Roll Forming Machine , Shearing Machine And Bending Machine , Slitting And Cutting Machine .
We service for you online 24 hours . If you have any question about the roll forming machine , please contact with me .
