Detailed Product Description
Basic Info
Model No.: KYT | Tile Type: Colored Steel |
Certification: SGS, CE, ISO, Other | Condition: New |
Customized: Customized | Usage: Other |
Transmission Method: Machinery | Name: Galvanized Window Frame Roll Forming Machine |
Control System: PLC | Cutting Type: Hydraulic Cutting |
Certificate: ISO9001/CE | Material Of Cutting Blade: Cr12 Heat Treatment |
Place Of Origin: China(Mainland) | Warranty: 18 Months |
Aftersale Service: Engineer Can Maintain Machine Overboard | Packing: By Water Proof Paper |
Deliever: Within 45 Days |
Additional Info
Packaging: seaworthy packing | Productivity: 30 sets per month |
Brand: KAIYITE | Transportation: Ocean,Land |
Place of Origin: China | Supply Ability: 30 sets per month |
Certificate: ISO9001/CE | HS Code: 8455221000 |
Port: Tianjin Port |
Product Description
Galvanized Window And Door Frame Roll Forming Machine Door Frame Machine is used to produced steel door and window frame. In actually, the door frame or window frame is a channel which can fix the door or window with the wall closely to make the door and window embed in the wall very strongly, It can also drill holes or embossed on the door frame.
With the door and window frame, your door and window will more strong and your house will be more fastness. It can protect your family and propert well, so your family will have a safity home with it. That is also why so many people is widly used in shop, warehouse and so on.

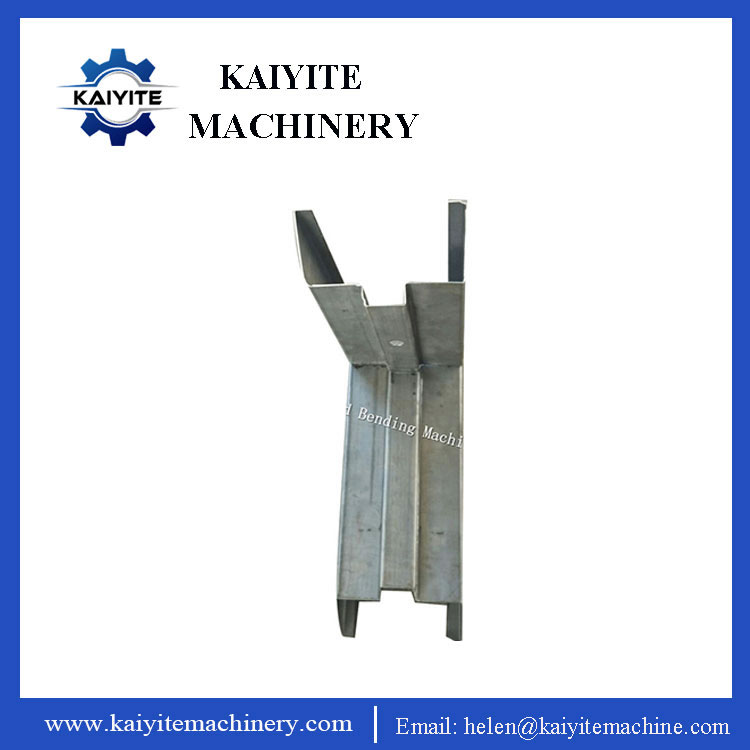

Finished Product of Galvanized Window Frame Roll Forming Machine
Machine Parameter
* Raw Material
A. Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate;
B. Width of the raw material: 210/330/350 mm or accroding to client’s requirement;
C. Thickness: 0.8mm – 1.5mm;
* Main Body
A. Roller station: 18 rows ( depend on the drawing) ;
B. Diameter of shaft: ¢80mm, 45# steel;
C. Roller material: 45# steel;
D. Frame: 350 H steel;
E. Operate: Manual and Automatic;
F. Working speed: 8 – 10 m/min;
G. Size (L*W*H): about 8600*1250*1600 mm;
* Power
A. Motor power: 5.5 Kw, Hydraulic power: 4 Kw;
B. Voltage: 380V 50Hz 3Phases or Customization;
C. Driving way: 1.5 inch Chain
Components of machine
* Manual Deciler………………………………..1 Unit
* Feeding Table and Leveling Device………………..1 Unit
* Main roll forming system………………………..1 Unit
* Hydraulic system…………………………….1 Unit
* PLC Control Cabinet………………………………1 Unit
* Discharge table…………………….1 Unit
* Spare Part…………….2 Unit

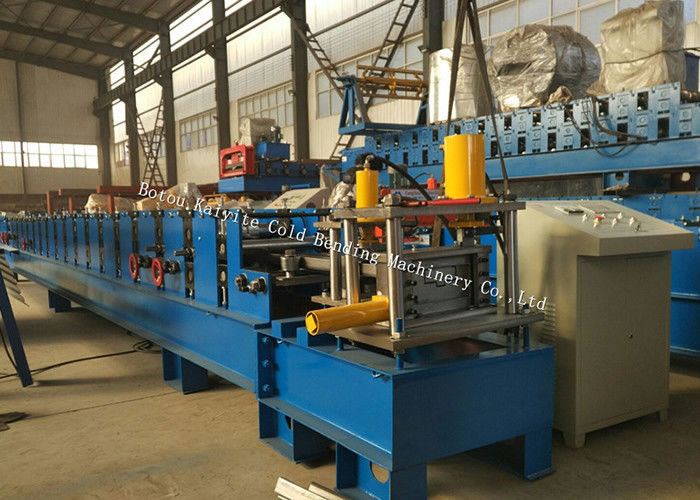

Layout Of Door Frame Roll Forming Machine

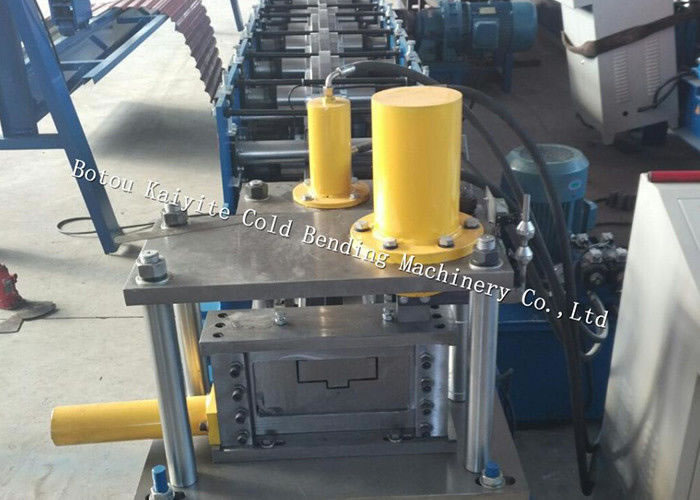

Decoiler- Feeding and Leveling device- Main Roll Forming System- PLC Control System- Hydraulic Punching and Cutting device- Discharge table
Angle Cutting Machine For Door And Window Frame
This machine is used to cutting the finished door or window frame. You can cutting any angle by this machine accroding to your requirement.
More Information About Door Frame
For more information,please contact with me.
