Detailed Product Description
Basic Info
| Model No.: KYT50-290 | Place Of Origin: China(Mainland) |
| Control System: PLC | Production Capacity: 8-10meter/min |
| Thickness Of Raw Material: 0.8-1.5mm | Cutting Type: Hydraulic Cutting |
| Voltage: 380V 50Hz 3Phases Or As Your Required | Roller Material: 45# Forged Steel |
| Material Of Cutting Blade: Cr12 Heat Treatment | Main Body: 350H Steel |
| Shaft Material: 45# Steel, Outer Diameter:80mm | Tile Type: Other |
| Certification: Other, SGS, CE, ISO | Condition: New |
| Usage: Other | Transmission Method: Hydraulic Pressure |
Additional Info
| Packaging: Seaworthy packing | Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9000 | HS Code: 8455221000 |
| Port: Tianjin Port,Shanghai Port | |
Product Description

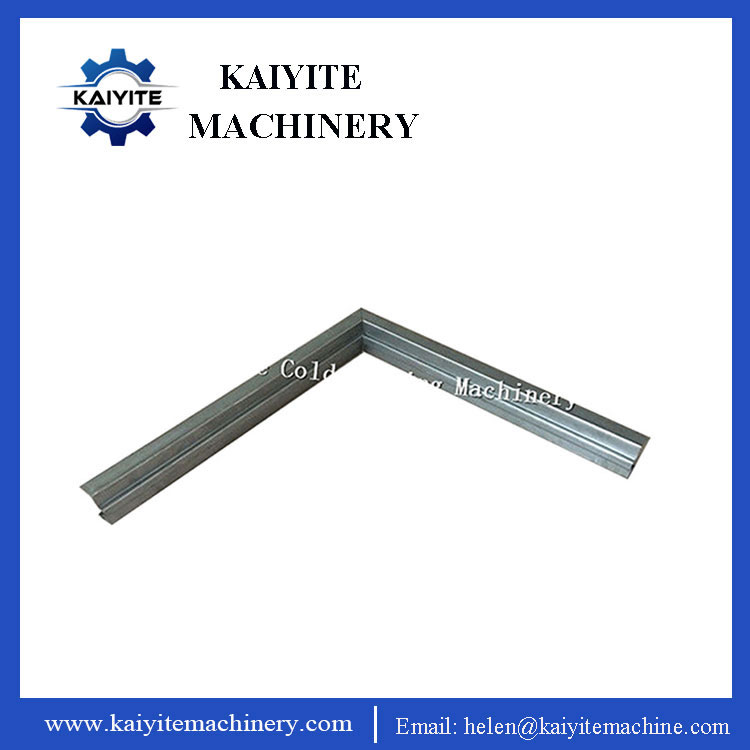

Galvanized Security Door/Gate Frame Roll Forming Machine
Galvanized Security Door/Gate Frame Roll Forming Machine is used to produced steel door frame and window frame. In actually , the door frame is a guide rail which can fix the door with the wall closely to make the door embed in the wall very strongly.

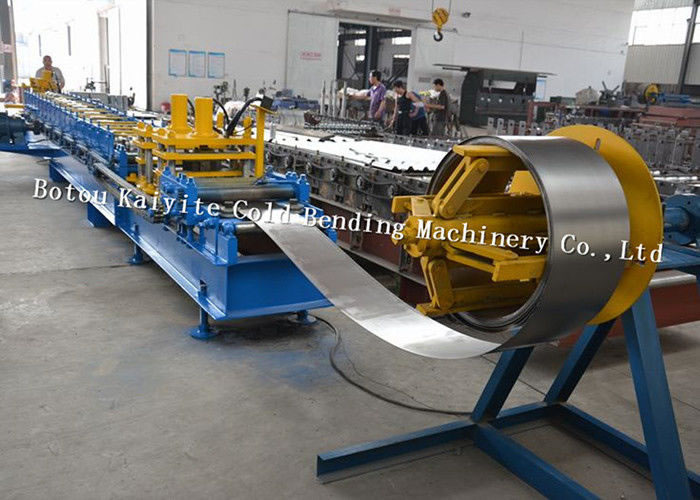

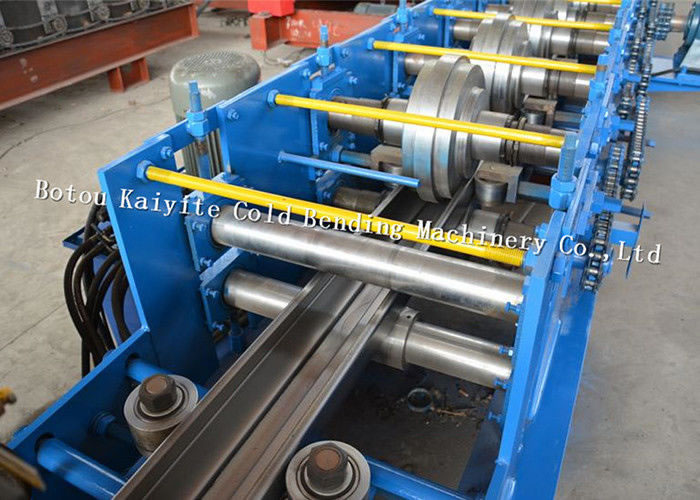

This Galvanized Security Door/Gate Frame Roll Forming Machine is composed of the Uncoiler, the main roll forming machine , cutting system and PLC Control system as well as the receiving table. It also needs 45 degree cutting system for the 45 door frame forming system.
These Door Frame Making Machine can be customized as per customer requirement. It is mostly known for its stability and superiority.

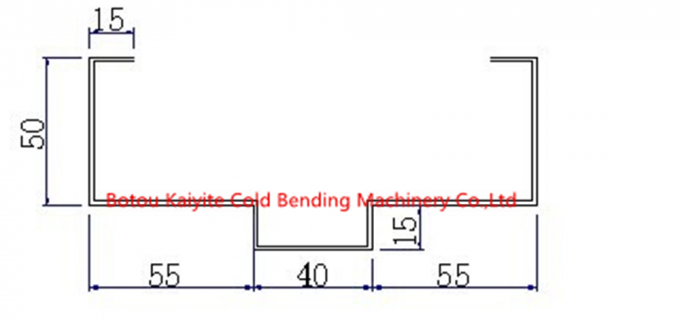

Profile of Door Frame
Machine Parameter
* Suitable Material : Steel Plate , Galvanized Board , Aluminium Plate ;
* Width of Raw Material : 290mm ; * Forming Stations : 17 Stations ;
* Machine Size : 8200*1450*1510mm ; * Forming Speed : 8-10m/min ;
* Power : Main Motor Power is 5.5Kw , Hydraulic Station Power is 4Kw ;
* Thickness of Material : 0.8-1.5mm ; * Volatge : 380V 50Hz 3Phases ;
* Diameter of Shaft : ￠80mm ;
Door Frame Producting Process Flow
Decoiler- Feeding and Leveling device- Main Roll Forming System- PLC Control System- Hydraulic Punching and Cutting device- Discharge table.
Packing and Shipping
For this machine need 1*40 GP container to load, one container can load 2 sets machines normally.
Before loading to container, we will check and test machine frist.
Second, make some protection on the machine. Such as, we will make the plastic package on the easy damage parts, paint the oil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delievery.
Third, we will fix all the parts into container by steel wire rope. And ensure the machine will not damage when shaking on sea.
At last, we will take phoots and videos for customer when loading to container, so that the customer can take out the machine easily when receive the goods.
