Detailed Product Description
Basic Info
| Model No.: KYT21-860-1000 | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall, Floor |
| Transmission Method: Hydraulic Pressure | Control System: PLC Control |
| After Sale Service: Engineer Available To Service Machine Abroad |
Certificate: CE/ISO9001 |
| Transmission: By Chain | Width Of Material: Accroding To Client’s Request |
| Cutting Device: Hydraulic Cutting | Payment: By T/T |
| Package: With Water Proof Paper | Warranty: 5 Years |
| Product Name: Glazed Roof Sheet Forming Machine | |
Additional Info
| Packaging: Main machine is packed with water proof paper, the computer control box is packed by carton box |
Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9000/CE | HS Code: 84552210000 |
| Port: Tianjin Port | |
Product Description

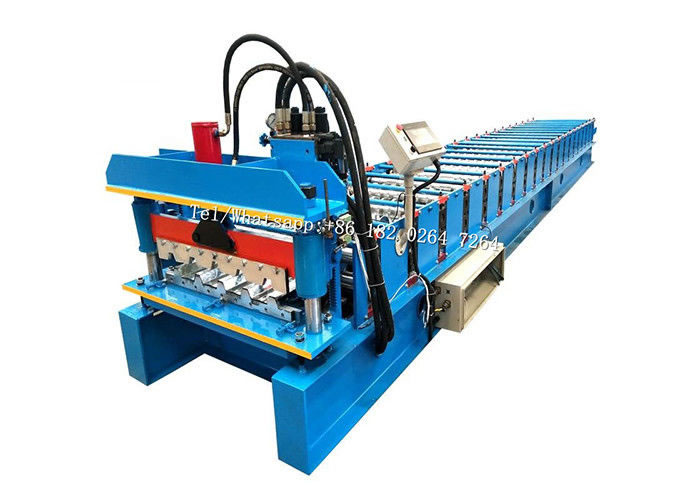

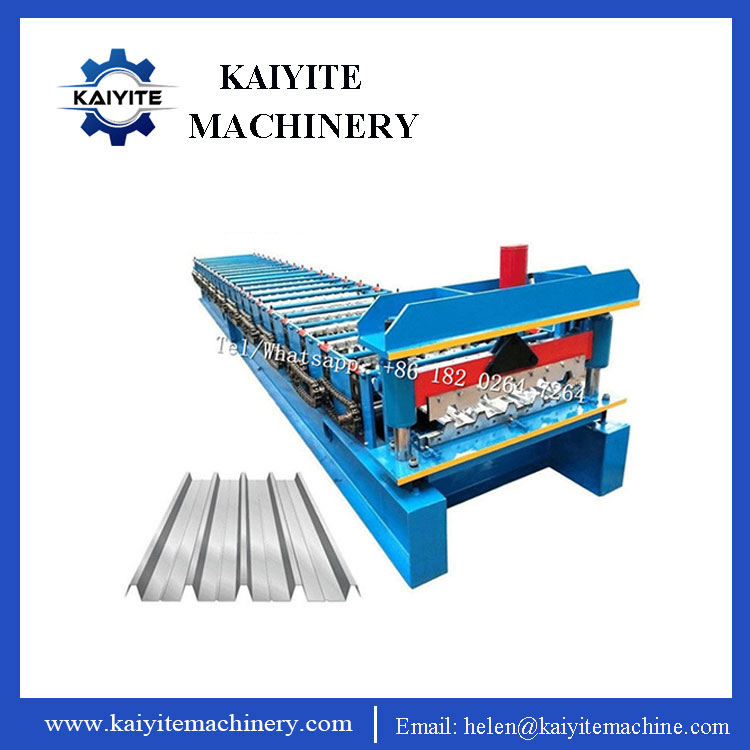

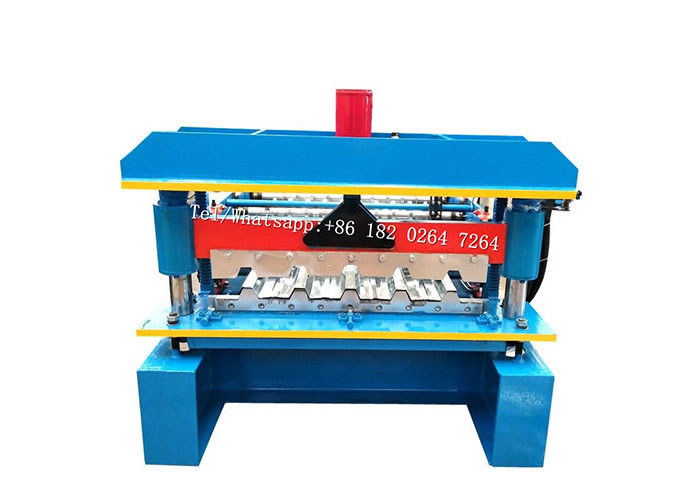

Galvanized Aluminium IBR Roof Sheet Roll Forming Machine
Galvanized Aluminium IBR Roof Sheet Roll Forming Machine is very popular in the world now , it plays a fairly important role in the steel struction building . As to the shape of this sheet like trapezoid , so we call it trapezoidal tile or IBR sheet . With this IBR roof and wall tile , your house will looks more beautiful and can protect your roofing of house well and give you a safty & warmly home.

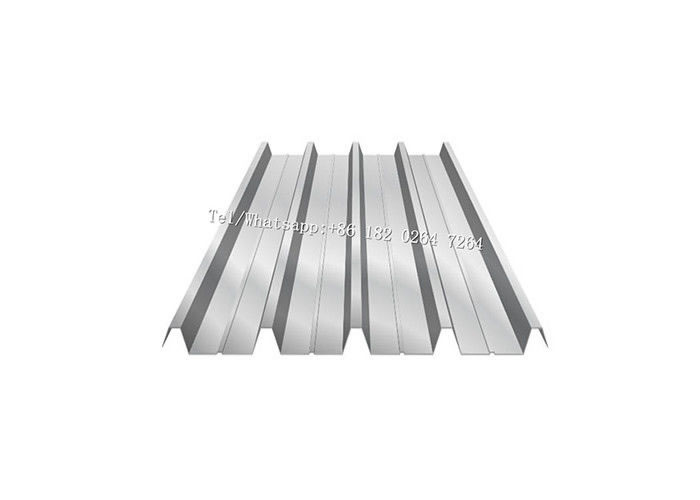

Profile And Finished Roof Tile By This Machine
Main Specification Of Galvanized Aluminium IBR Roof Sheet Roll Forming Machine
| No. | Type | Specification | |
| 1 | Row Material | Type | Aluminum / Steel / Galvanized Panel |
| Feeding width | 1000mm | ||
| Thickness | 0.3-0.7mm | ||
| 2 | Main body | Roller station | 13 Steps |
| Diameter of shaft | ￠75mm | ||
| Shaft material | 45# Steel , Heat Treatment and Polishing | ||
| Roller material | 45# Steel , Heat Treatment and Polishing | ||
| Frame | 350mm H Steel | ||
| Frame thickenss | 18 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 8-12m/min | ||
| Size (L*W*H) | About 8600*1550*1510mm | ||
| Weight | About 3.5 Tons | ||
| Cutting type | Hydraulic cutting | ||
| Material of blade | Cr12, HRC60-62°C | ||
| 3 | Power | Motor power | 4 kw |
| Hydraulic power | 4 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Chain | ||
Working Flow Of Galvanized Aluminium IBR Roof Sheet Roll Forming Machine
5 Tons Decoiler — Panel Feeding And Guiding Table — Main Roll Forming Machine — PLC Control System — Hydraulic Cutting Device — Product Receiving Table
Component of Galvanized Aluminium IBR Roof Sheet Roll Forming Machine
* 5T Decoiler………………………………1 Set
* Feeding Table………………………………1 Set
* Main Roll Forming Machine………………………………1 Set
* PLC Control System………………………………1 Set
* Hydraulic Cutting………………………………1 Set
* Discharge Table………………………………2 Set
More Different Profile Of Trapezoidal Tile
We can design machine according to customer’s requirement or profile drawing.
Machine Feature
* Full automatic * Lower cost * High efficiency
* Reliable working * 5 Years Warranty * Easy Operate
* Low energy consumption * Accurate * Passed ISO9001/CE
Application
This type of sheet are widly used in warehouse, workshop, roofing and other part. It has a large market.
Loading And Shipping
* We will packed water proof paper on the machine .
* This Trapezoidal Tile Roll Forming Machine need 1*40 GP container to load .
* Fix machine by steel wire rope, to ensure it will not damage when shaking on sea.
* We will take photos and videos for customer when loading to container .
