Detailed Product Description
Basic Info
| Model No.: KYT | Tile Type: Other |
| Certification: CE | Condition: New |
| Customized: Customized | Usage: Other |
| Transmission Method: Other | Name: PU Foam Shutter Door Machine |
| Transmission: Gear Box | Material: Aluminum Steel |
| Mould Number: 45mm | Warranty: 5 Years |
| After Sale Service: Engineers Available To Service Machinery Overseas | |
Additional Info
| Packaging: Seaworthy packing | Productivity: 30 sets per month |
| Brand: KYT | Transportation: Ocean |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001 | HS Code: 84552210 |
| Port: Tianjin Port,Qingdao Port,Shanghai Port | |
Product Description
Foam Insulated Shutter Profile Machine
The foam insulated shutter profile machine is used to produce the window and door slats . It has the size of 39 , 45 , 55 , 77, 82, 95 and so on . Normally the size of 39 , 45 , 55 profile has the small hole . It can let the light and air come into the room when we close the window . For the big size of 77 , 82 , 95 donot have the hole . It is widely used on the door profile .
The final profile of the roller shutter door forming machine .
This pu foam profile is 45mm , and it has hole on the profiles .
The technical process of pu foam roll up shutters forming machine
Uncoiler — Feeder guide– Roll Forming part — Preheating — Pu foam injection — Heat preservation— roll forming— Leveling— Punching part—Fly saw cutting with servo motor
The specification of the Roller Shutter Door Machine
Raw material :
type : aluminum sheet or steel sheet Feeding width : 127 mm
Thickness : 0.22 -0.35 mm
Main body :
Roller station :37 stations Diameter of shaft : 55 mm
Shaft material : 40 Cr Roller material : Cr15 quenching
Frame : 300 H steel
Power :
Main motor power : 11KW Cutting power : 3 KW
Foam machine power : 5 KW

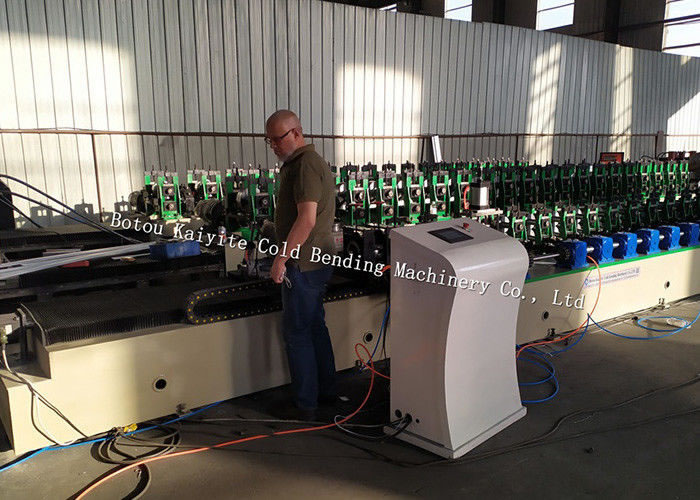

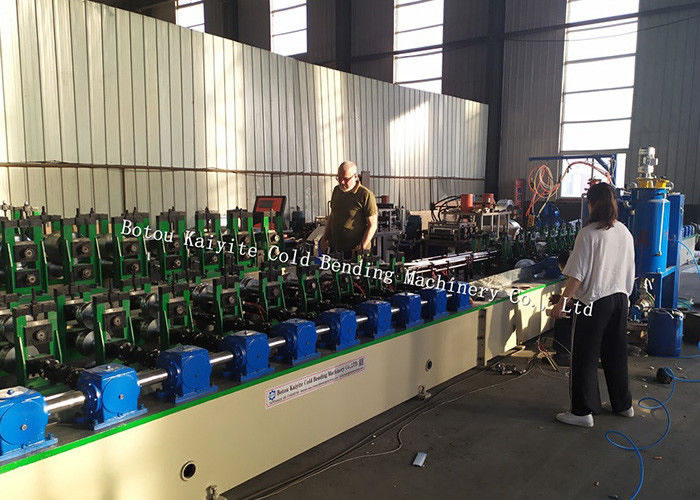

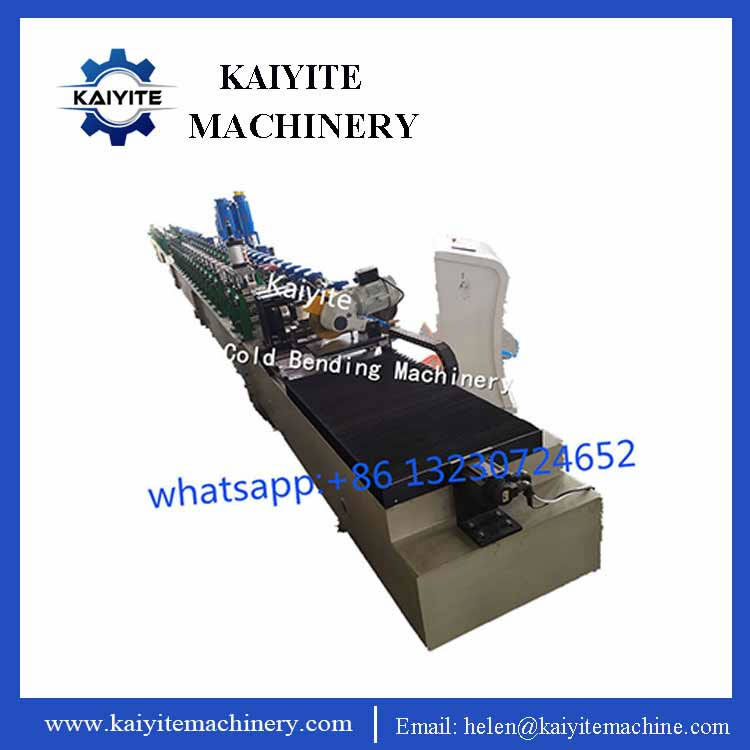

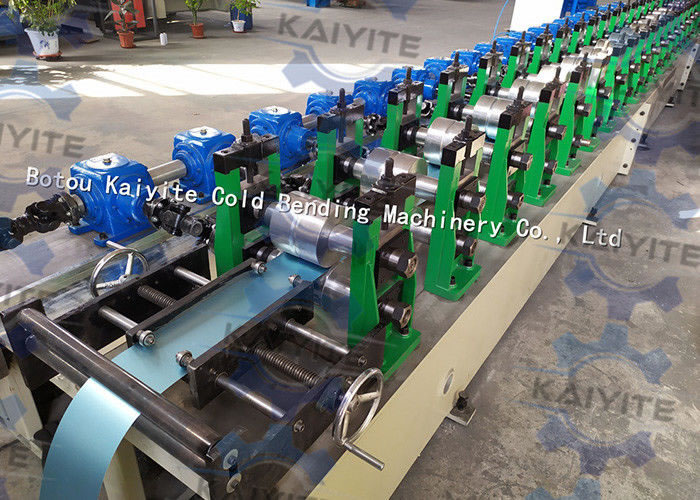

The picture of the Roller Shutter Door Roll Forming Machine
The application of the Roller Shutter Forming Machine
