Detailed Product Description
Basic Info
| Model No.: KYT | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall |
| Transmission Method: Electric | Name: Corrugated And Trapezoid Roof Panel Machine |
| After-sale Service: Engineer Available
To Service Overboard |
RAW MATERIAL: Color Steel, Galvanized Board,
Aluminium Plate |
| Thickness Of Material: 0.3-0.8mm | Place Of Origin: China |
| Certificate: ISO9001/CE | Warranty: 18 Months |
| Package: Packed With Water Proof Paper | Control System: PLC |
| Cutting Type: Hydraulic Cutting | |
Additional Info
| Packaging: Seaworthy packing | Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land |
| Place of Origin: China (Mainland) | Supply Ability: 30 sets per month |
| Certificate: CE/ISO9001 | HS Code: 8455221000 |
| Port: Tianjin Port | |
Product Description

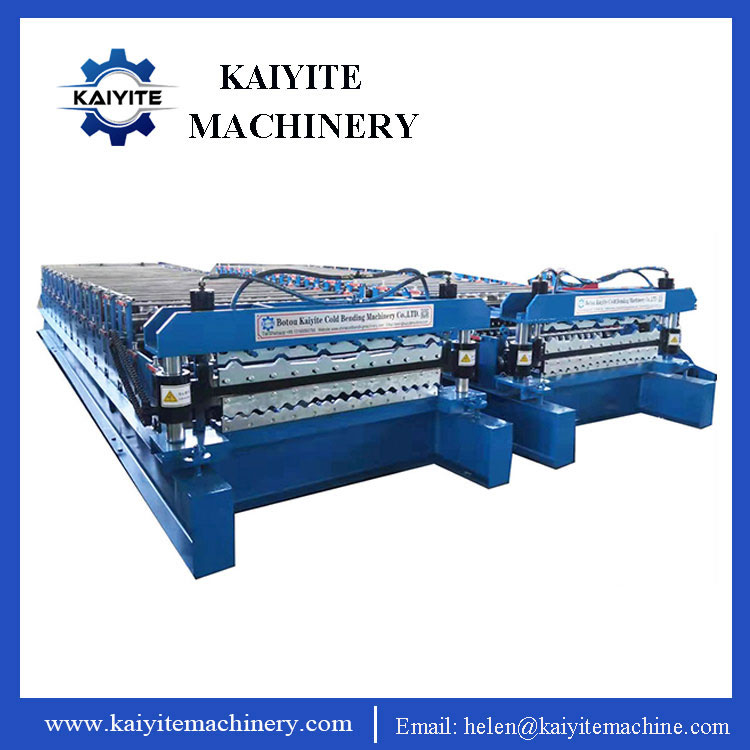

Double Layer Roofing Panel Production Line
The double layer roofing panel production line solve the problem of small space factory . We can get two different types by only one machine . We produce this Double Deck Roll Forming Machine for our Philippines client .This Double Roll Forming Machine use the guide pillar for the cutting system . It is good to use .
Main Parameter Of Two Layer Roof Panel Machine
* Roller Stations: Up Layer : 11 Station, Down Layer : 14 Station
* Material of roller : 45# H steel plate with chrome
* Shaft : 45# H steel, 70mm
* Material of main body : 350mm H steel
* Working Speed : 8-12 m / min
* Power : Main Power is 3Kw, Hydraulic Pump : 3Kw
* Driving Way : By Chain
* Weight of Machine : About 5.5 Ton
* Voltage : 380V 50Hz 3Phases or Customerization
* Operation : Manual and Automatic
* Blade : Cr12, Heat Treatment
Layout Of Double Layer Roll Forming Machine
Component of Double Layer Roll Forming Machine
* 5T Decoiler……………………….1 Set
* Main Roll Forming Machine……………………….1 Set
* PLC Control Cabinet……………………….1 Set
* Hydraulic Station……………………….1 Set
* Hydraulic Cutting Device……………………….1 Set
* Product Receiving Tables……………………….2 Set
* Spare Part……………………….1 Set
More Different Shape Roof Sheet
Produce Flow Of Machine
Application
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
