Detailed Product Description
Basic Info
| Model No.: KYT | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall |
| Transmission Method: Electric | Name: Corrugated And Trapezoid Roof Panel Machine |
| After-sale Service: Engineer Available
To Service Overboard |
Raw material: Color Steel, Galvanized Board,
Aluminium Plate |
| Thickness Of Material: 0.3-0.8mm | Place Of Origin: China |
| Certificate: ISO9001/CE | Warranty: 18 Months |
| Package: Packed With Water Proof Paper | Control System: PLC |
| Cutting Type: Hydraulic Cutting | |
Additional Info
| Packaging: seaworthy packing | Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land |
| Place of Origin: China (Mainland) | Supply Ability: 30 sets per month |
| Certificate: CE/ISO9001 | HS Code: 8455221000 |
| Port: Tianjin Port | |
Product Description
Double Layer Roof Roll Former For Bolivia
Double layer roofing roll former can produce two type sheets, one corrugated sheet and one IBR sheet. The input material are both 1000 mm width with thickness 0.3-0.8mm. Machine speed 8-12 m per minute. With pre-cutting device and double inches chain. This machine cheaper and stable. Widely used in South America zone. Expecially Bolivia. We can also supply you the PPGI and GI coils. We know some good supplier. We can put the coils with the machine in the same container
Layout Of the Roof And Wall Panel Roll Forming Machine
The Main specification of the Metal Roofing Panel Machine
* Roller Stations: Up Layer : 13 Station, Down Layer : 14 Station
* Material of roller : 45# H steel plate with chrome
* Shaft : 45# H steel, 70mm
* Material of main body : 350mm H steel
* Working Speed : 8-12 m / min
* Power : Main Power is 3Kw, Hydraulic Pump : 3Kw
* Driving Way : By Chain
* Weight of Machine : About 5.5 Ton
* Voltage : 380V 50Hz 3Phases or Customerization
* Operation : Manual and Automatic
* Blade : Cr12, Heat Treatment
Layout Of Double Layer Roll Forming Machine
Component of Double Layer Roll Forming Machine
* 5T Decoiler……………………….1 Set
* Main Roll Forming Machine……………………….1 Set
* PLC Control Cabinet……………………….1 Set
* Hydraulic Station……………………….1 Set
* Hydraulic Cutting Device……………………….1 Set
* Product Receiving Tables……………………….2 Set
* Spare Part……………………….1 Set

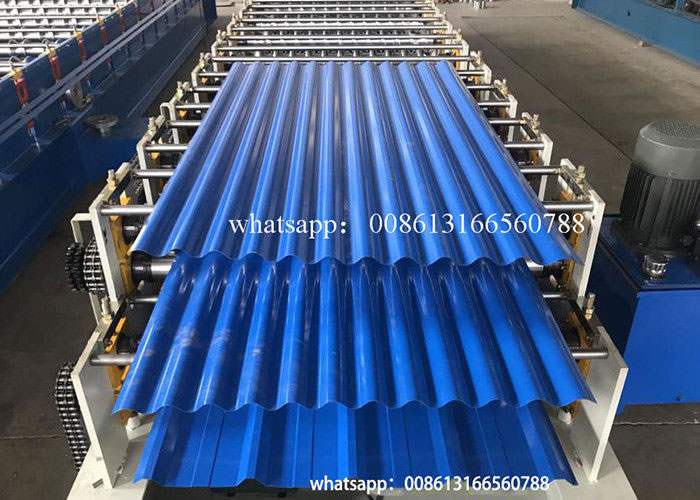

The picture of the double layer roll forming machine
Application of the Metal Roof Roll Forming Machine
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
