Detailed Product Description
Basic Info
| Model No.: KYT | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall, Other |
| Transmission Method: Machinery | Place Of Origin: China |
| After-sales Service Provided: Engineers Available To Debug The Machine Overseas |
Brand: KYT |
| Warranty: 24 Months | Package: Packed With Water Proof Paper |
| Deliever Time: Within 45 Days | Certificate: CE/ISO9001 |
| Name: Double Deck Door U Guide Rail Machine | Payment: By T/T |
Additional Info
| Packaging: Seaworthy packing | Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001 | HS Code: 8455221000 |
| Port: Tianjin Port,Shanghai Port | |
Product Description

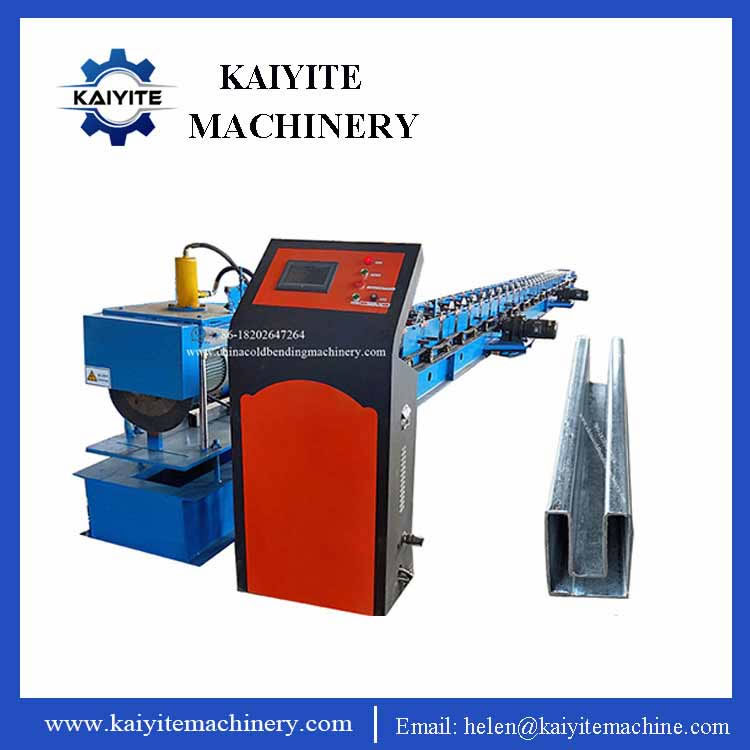

Double Deck Shutter Door U Guide Rail Roll Foming Machine
This Shutter Door U Guide Rail adopt double deck , in this way the U guide rail will more stronger . Shutter door is main made up of U guaid rail, shutter door salt and bottom guaid. As a very important part, siding U guaid rail need work with shutter door salt and bottom guide. The slidting U guide rail fix on the two side of shutter door, with it, the shutter door strips can move up and down easy, in this way, the shutter door can open and closed smoothly.
Double Deck Shutter Door U Guide Rail Machine Working Flow
3.5T Decoiler — Feeding Table — Main Roll Forming Machine — PLC Control System — Hydraulic Cutting — Product Receiving Table
Main Technical Parameters Of Double Deck Shutter Door U Guide Rail Machine
| No. | Type | Specification | |
| 1 | Row Material | Type | Colored steel plate, galvanized board, aluminum plate |
| Feeding width | 100-160 mm (According to the profile) | ||
| Thickness | 0.6-1.2mm | ||
| 2 | Main body | Roller station | 13 steps (According to the profile) |
| Diameter of shaft | ￠50mm | ||
| Shaft material | 45# Steel | ||
| Roller material | 45# Steel | ||
| Frame | 200mm H Steel | ||
| Frame thickenss | 14 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 8-12 m/min | ||
| Size (L*W*H) | About 6600*1550*1510mm | ||
| Weight | About 2.0 Tons | ||
| Cutting type | Hydraulic cutting | ||
| Material of blade | Cr12 | ||
| 3 | Power | Motor power | 3 kw |
| Hydraulic power | 3 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Chain | ||
Finished Production
We can design machine according to customer’s requirement or profile drawing .
Different Type of Shutter Door U Guide Raile

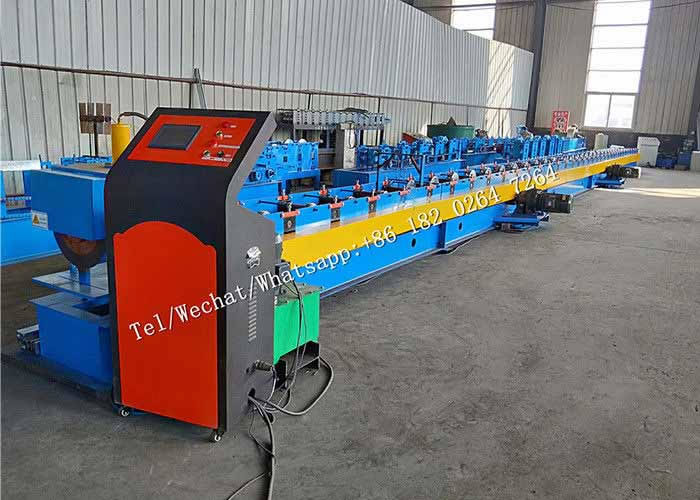

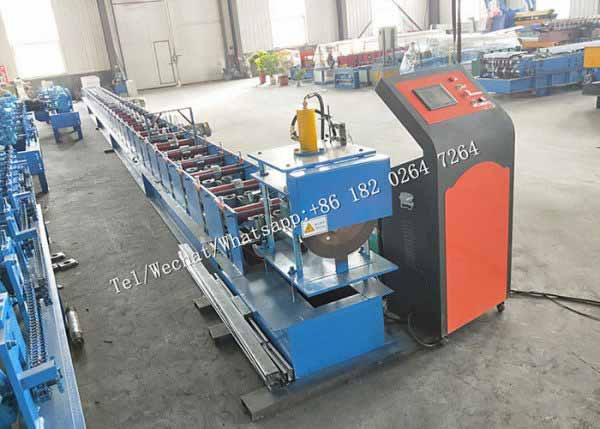

More Detail Pictures Of Machine
Wall Plate
Motor

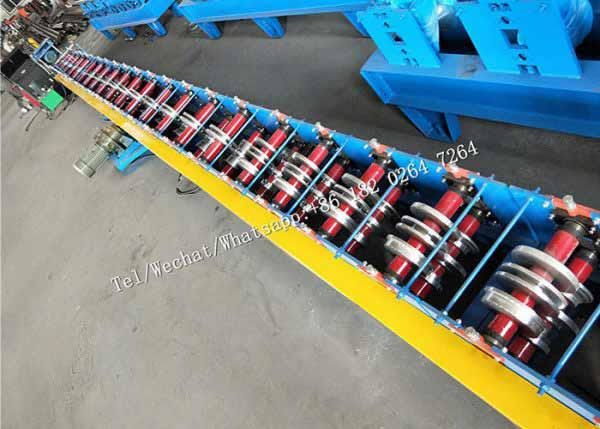

Roller and Shaft
Application
Shutter door is main made up of U guaid rail, shutter door salt and bottom guaid. As a very important part, U guaid rail need work with shutter door salt and bottom guide. It usually install in the two side of the door, and help the shutter door salt easy up and down ( Open and close ). Shutter Door is widly used in the shop , warehouse , carport and so on . The shutter door can better protect your house from wind , rob , fire ect . It can give your house a more safe condition .
Packing And Loading
* The Double Deck Shutter Door U Guide Rail Machine need 1*40 GP container to load .
* The whole machine will packed water proof paper , ane we will paint oil on the roller and shaft .
* We will fix machine with container by steel wire rope to ensure it not damage when shaking on sea .
* We will take photos and videos for customer when loading to container .
Clients Visit
Welcome all the friends from all over the world to visit us . We can have a meet face to face , what’s more , you can know us and our factory better .
Contact Us
If you want to learn more about this machine or has any questions , please contact us freely .
