Detailed Product Description
Basic Info
| Model No.: KYT18-76-1066 | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall, Floor |
| Transmission Method: Hydraulic Pressure | Product Name: Aluminium Trapezoidal Roof And Wall Panl Machine |
| Control System: PLC Control | After Sale Service: Engineer Available To Service Machine Abroad |
| Certificate: CE/ISO9001 | Transmission: By Chain |
| Warranty: 18 Months | RAW MATERIAL: Colored Steel Plate;Galvanized Board; Aluminum Pla |
| Thickness Material: 0.3-0.7mm | Width Of Material: Accroding To Client’s Request |
| Cutting System: Hydraulic Cutting | |
Additional Info
| Packaging: Main machine is packed with water proof paper, the computer control box is packed by carton box |
Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001/CE | HS Code: 8455221000 |
| Port: Tianjin Port | |
Product Description

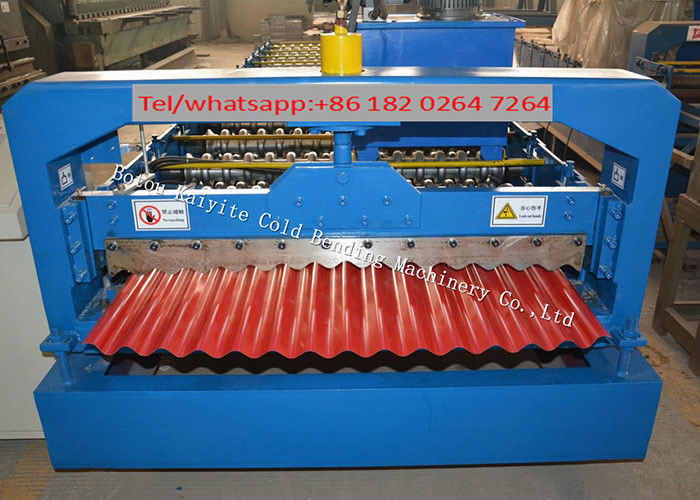

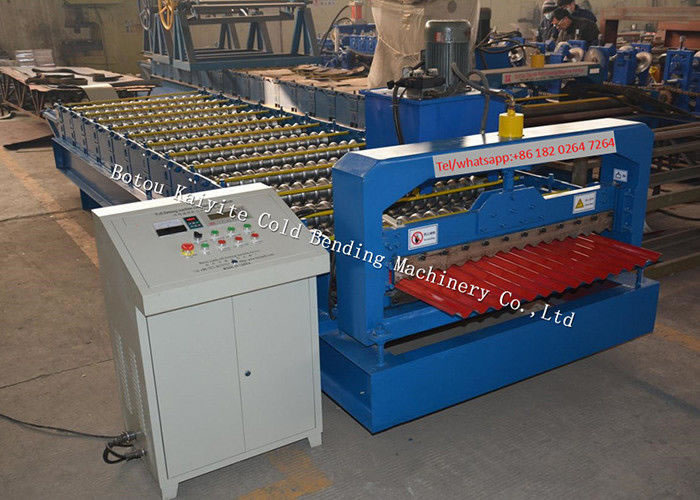

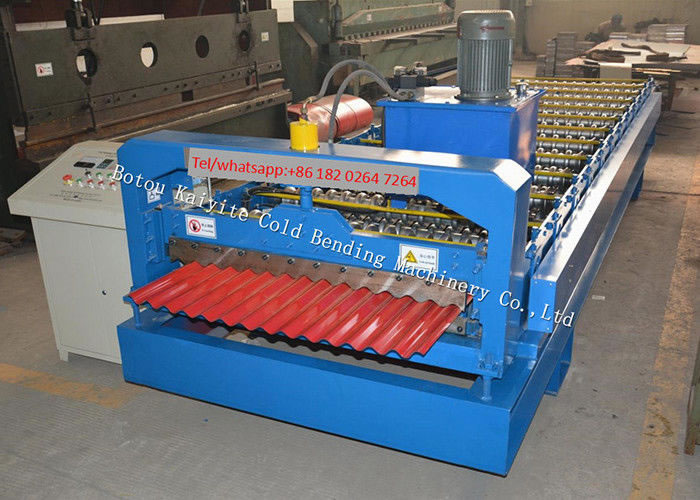

Corrugated Roof And Wall Panel Roll Forming Machine
The water wave profile roof tile produced by Corrugated Roof And Wall Panel Roll Forming Machine is the one of the most popular panel in Iran . It is widely used in steel building structure in Iran market. This kind of machine max capacity can reach 1800m/h, but cost small.
What is the main parameter of Corrugate Profile Roof Sheet Machine ?
| 1 | Dimensions (L*W*H) | 6200*1550*1510mm |
| 2 | Total power | Motor power:4kw Hydraulic power:4kw |
| 3 | Rows of rollers | 12 Stations |
| 4 | Productivity | 10-15m/min |
| 5 | Diameter of shaft | 75mm |
| 6 | Voltage | 380V 50hz 3phases |
| 7 | Machine body | 300mm H beam |
| 8 | Middle plate | 16mm |
| 9 | Weight | About 3 ton |
| 10 | Chains | 1.5 inch |
| 11 | Roller material | 45# steel plated with chrome |
| 12 | Shafts material | 45# steel |
| 13 | Cutting blade material | Cr12 with quenching treatment |

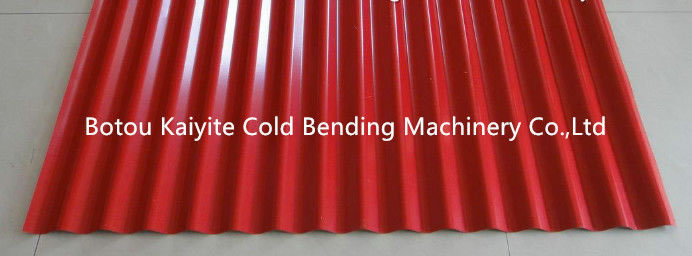

Finished Roof Tile
More Other Similar Roof Sheet
What will benefit you if you buy roof tile roll forming machine ?
* Quality: The machine can service for you more than 15 years , so it can make money for you for a long time .
* Save money: As the technoly of this corrugated profile roof tile roll forming machine is manual , so the cost of it is not too much .
* Get a wonderful after sale service : To the customized machine , the after sale serive is the most concered question for the clients . Our company has the after sale service department which service for you online for 24 hours . They can help you solve you problem ASAP, no matter what problem you meet .
Clients may meet many problems when using the roof sheet roll forming machine . We will give you a good solution to solve them and make you free of trouble .
Such as the following :
1. What space do we need for the roll forming machine
2. The distance of between the roll machine body and decoiler
3. How to install the steel coil with the manual decoiler
4. how to adjust the distance of the upper and down shaft
5. How to cut the steel coil when finish the working
6. How to set the numbers in control box
7. How to connect the wiring of roll forming machine
8. what kind of hydraulic oil should be filled in hydraulic motor box
9. How many oil should be filled in box
10. The machine not work automatically.
11. The cutter not goes up when cut the panel
12. the panel goes a wrong way in roll forming machine body, not form in one line
13. Client changed the parameter of encoder, i help them to change the parameter
14. the panel not stop when reach the length
15. Motor oil leakage
16. How to adjust the forming speed of roll forming machine
