| Detailed Product Description | |||
| Place Of Original: | China | Brand: | KYT |
| Control System: | Full Automatic | Warranty: | 5 Years |
Basic Info
Model No.: KYT Tile Type: Colored Steel
Certification: SGS, CE, ISO Condition: New
Customized: Customized Usage: Roof, Wall
Transmission Method: Electric Name: Corrugated And Trapezoid Roof Panel Machine
After-sale Service: Engineer Available To Service Overboard Raw material: Color Steel, Galvanized Board, Aluminium Plate
Thickness Of Material: 0.3-0.8mm Place Of Origin: China
Certificate: ISO9000 Warranty: 18 Months
Package: Packed With Water Proof Paper Control System: PLC
Cutting Type: Hydraulic Cutting

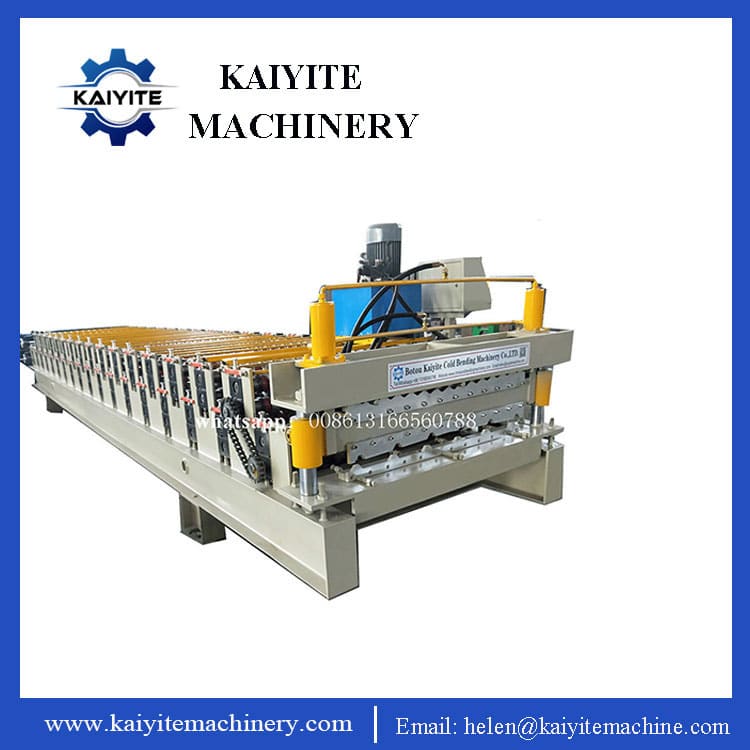

Colorful Steel Two Layer Roof Roll Forming Machine
Colorful Steel Two Layer Roof Tile Roll Forming Machine can be any type of two kinds of single board can be assembled on a production equipment, this machine is divided into two layers, the up layer and bottom layer production of different types of sheet.
Therefore, it can achieved a dual-use effect, with one device can produce two different versions, not only saves space, but also saves the cost accrodingly.
Main Parameter Of Two Layer Roof Panel Machine
* Roller Stations: Up Layer : 16 Station, Down Layer : 18 Station
* Material of roller : 45# H steel plate with chrome
* Shaft : 45# H steel, 70mm
* Material of main body : 350mm H steel
* Working Speed : 8-12 m / min
* Power : Main Power is 3Kw, Hydraulic Pump : 3Kw
* Driving Way : By Chain
* Weight of Machine : About 5.5 Ton
* Dimension : 6600 * 1510 * 1550 mm
* Voltage : 380V 50Hz 3Phases or Customerization
* Operation : Manual and Automatic
* Blade : Cr12, Heat Treatment
Layout Of Double Layer Roll Forming Machine
Component of Double Layer Roll Forming Machine
* 5T Decoiler……………………….1 Set
* Main Roll Forming Machine……………………….1 Set
* PLC Control Cabinet……………………….1 Set
* Hydraulic Station……………………….1 Set
* Hydraulic Cutting Device……………………….1 Set
* Product Receiving Tables……………………….2 Set
* Spare Part……………………….1 Set
More Different Shape Roof Sheet
Application
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
