Detailed Product Description
Basic Info
| Model No.: KYT | Working Speed: 8-15 Meter/min |
| Control System: PLC | Blade Material: Cr12 |
| Warranty: 24 Months | After Sale Service: Engineer Available To Service Abroad |
| Thickness Material: 0.7-1.2mm | Product Name: Fire Rated Shutter Door Making Machine |
| Cutting System: Hydraulic Cutting | RAW MATERIAL: Galvanized Steel, Aluminium Plate |
| Certificate: ISO9001/CE | |
Additional Info
| Packaging: seaworthy packing | Productivity: 30 sets per month |
| Brand: KYT | Transportation: Ocean |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9000/CE | HS Code: 8455221000 |
| Port: Tianjin Port | |
Product Description

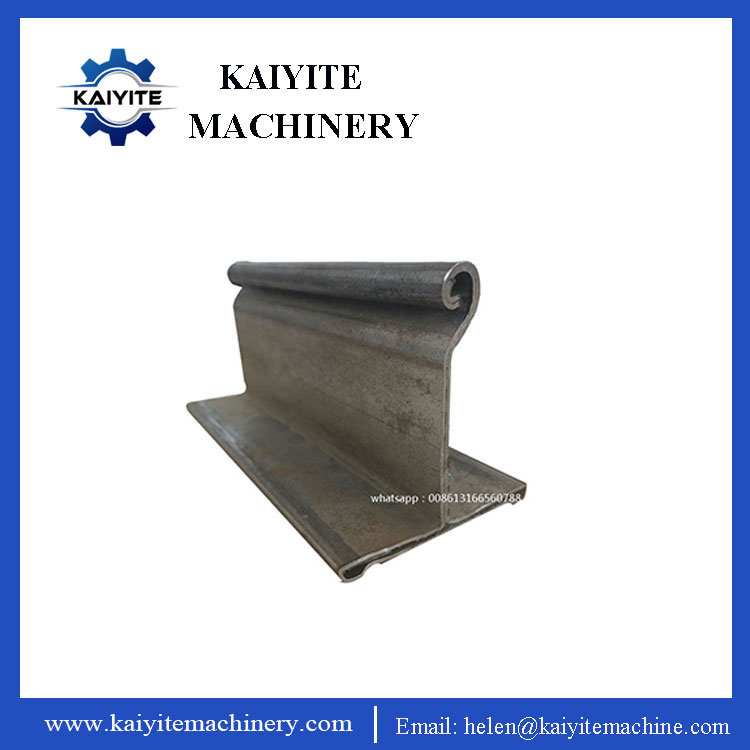

Bottom Strips of Shutter Door Roll Forming Machine
Bottom strips of shutter door roll forming machine is used to produce the bottom strip for the shutter door . From the following installation drawing , the down part of the shutter door is the bottom strip . This part is almost near the ground , so it is very flat . One whole shutter door insist the U guide rail , shutter door profile and the bottom strips . For the bottom strips , there are different shape . We can design and produce it according to the client requirement .
The detailed parameter of the shutter door roll forming machine
Material weight: 1TON;
Material: Galvanized Steel or Prepainted Steel strips;
Material width: 300mm Max;
Inner Diameter: 450-520mm;
Outer Diameter:1200mm;
Structure: H Steel welded to Steel Plate;
Expansion: Manual;
Punch: Hydraulic pressing tool;
Diameter of Punched Hole: as per request;
Hole Distance: adjustable;
Thickness of Material: 0.6-1.2mm;
Roll Stations: 14 Stations;
Forming Speed: 0-12 m/min;
Material of Roller: 45# steel coated with hard chrome;
Material of Shaft: 45# Steel with tempering treatment;
Dia. Of Shafts: 70mm;
Transmission: by chain-brackets;
Material of Siding Plate: A3 steel-welded structure,18mm thickness;
Material of Main Structure:10# Channel Steel;
Main Power: 5.5 KW;
Cutting: Tracking Fly-saw or Hydraulic cutting
Hydraulic Power: 3KW;
Fly-saw Power: 2.2 KW;
Material of Cutting Blade: Cr12 MOV Steel;
Tolerance of Cutting Length: +/-2mm;
Electricity: 380V/3ph/50HZ.
Control system: Panasonic PLC, Omron encoder, Inverter and CHNT transformer;

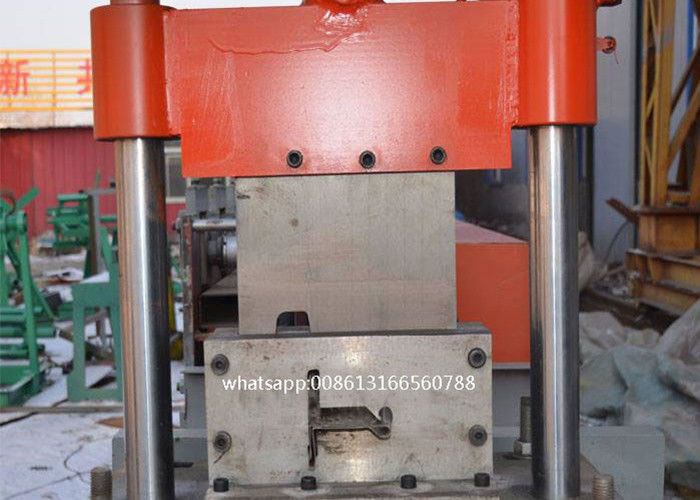

Some picture of the Roller Shutter Door Machine for your reference
