Detailed Product Description
Basic Info
| Model No.: KYT | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall, Other |
| Transmission Method: Machinery | Place Of Origin: China |
| After-sales Service Provided: Engineers Available
To Debug The Machine Overseas |
Delivery Time: Within 45 Days |
| Warranty: 18 Months | RAW MATERIAL: Colored Steel Sheet,
galvanized Steel Sheet |
| Control System: PLC | Cutting Type: Hydraulic Cutting |
| Production Capacity: 8-15meter/min | Certificate: CE/ISO9001 |
| Name: Australia Type Roller Shutter Security Door Machine | |
Additional Info
| Packaging: Seaworthy packing | Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001/CE | HS Code: 84552210 |
| Port: Tianjin Port,Shanghai Port | |
Product Description

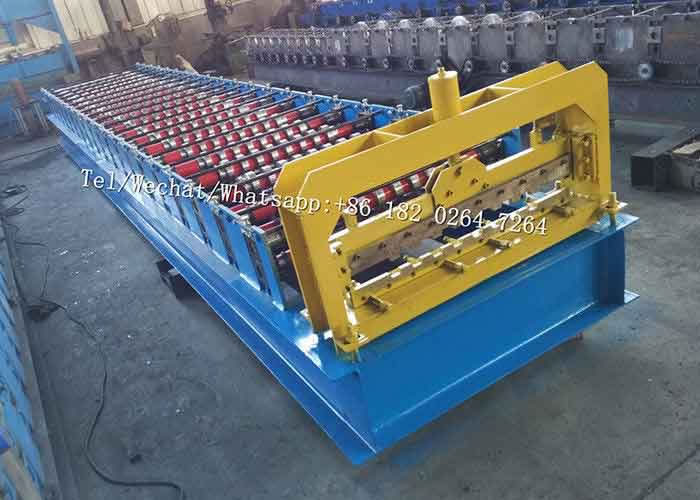

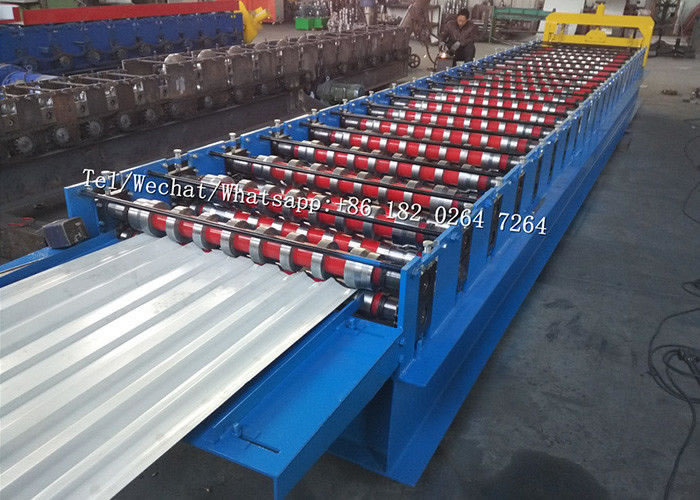

Australia Style Roller Shutter Door Roll Forming Machine With 6m Electric Seaming Machine
Australia Style Roller Shutter Door Roll Forming Machine With 6m Electric Seaming Machine is used to produce Shutter Door . This kind of door is very safity with long life , it can slove rob , fire and other problems well . In general , the Australia Style Roller Shutter Door Roll Forming Machine need work with electric seaming machine together . After the Australia Style Roller Shutter Door Roll Forming Machine formed the shutter door , the seaming machine will combine two piece of shutter door salt together .
Working Flow
5 Tons Decoiler — Panel Feeding And Guiding Table — Main Roll Forming Machine — PLC Control System — Hydraulic Cutting Device — Product Receiving Table
Machine Feature
* Low Cost * High efficiency * 18 Months Warranty
* Reliable working * Low energy consumption * Easy to operate
* Long working life * Accurate * Full automatic
* No noise
Quick Technical Parameters
* Voltage : 380V 50Hz 3Phases * Productivity : 8-12m/min
* Material of rollers : 45#steel * Roller Stations : 18 Stations ( Accroding to the drawing )
* Material Of Shaft : 45#steel * Diameter Of Shaft : Ф70mm
* Main Power : 3Kw * Hydraulic Power : 3Kw
* Cutting Type : Hydraulic Cutting * Material Of Blade : Cr12
* Main Body : 350 H Steel * Thickness Of Middle Plate : 16mm
* Driving Type : By Chain * Thickness Of Raw Material : 0.3-1.0mm

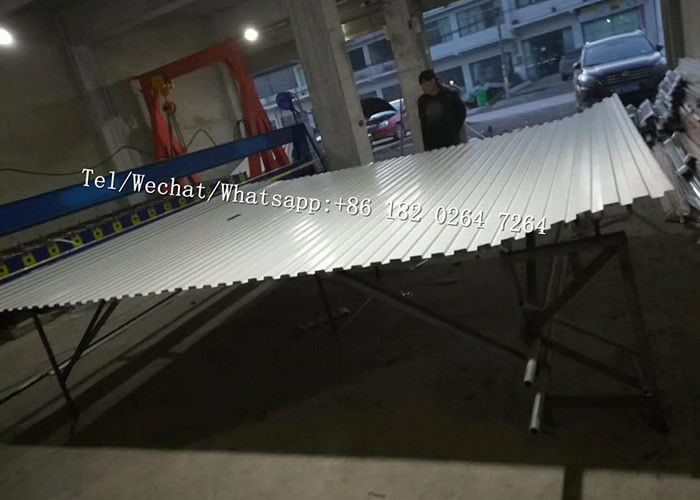

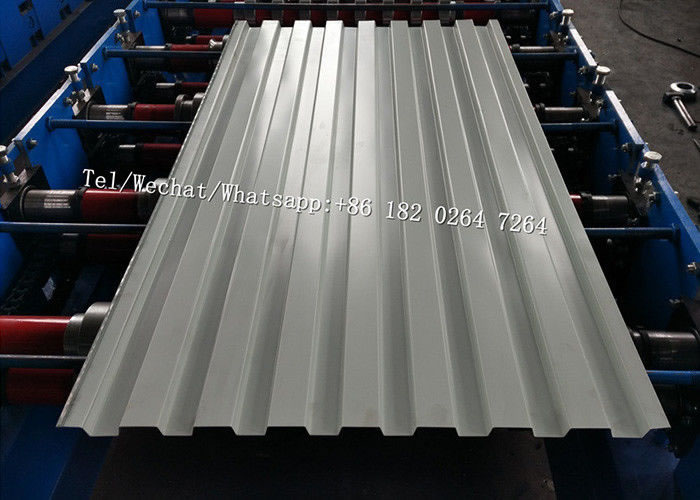

Finished Product
Some Common Profile Of Australia Shutter Door
Application
Australia Type Roller Shutter Security Door in colored , against fading , resistant to rust , and be widely used in shops , working departments , warehouses , and fire partition .
Clients Visit
Contact Us
If you want to know more about this machine, please contact us freely.
Looking for ideal 6m Electric Seaming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Australia Style Door Forming Machine are quality guaranteed. We are China Origin Factory of Galvanized Roller Shutter Security Door Machine. If you have any question, please feel free to contact us.
